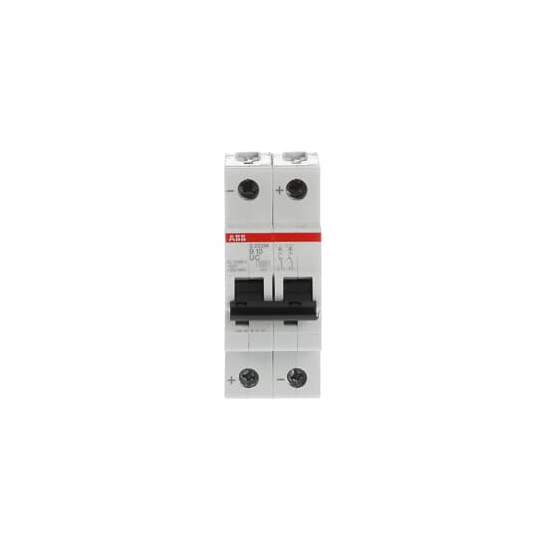

Circuit breaker S200MUC 2P B10 10kA DC - ABB2CDS272061R0105
ABB2CDS272061R0105
€49.04 Excl. Tax
€58.85 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| RoHS compliance: | EU Declaration S200 MUC |
|---|---|
| RoHS status: | In accordance with EU Directive 2011/65/EU and Amendment 2015/863 of July 22, 2019 |
| RoHS date: | 2011-06-08 |
| REACH declaration: | Statement on REACH Regulation |
| REACH information: | True ? contains substances > 0.1% by mass |
| REACH date: | 2024-08-21 |
| Conflict Minerals Reporting Template (CMRT): | Conflict Minerals Reporting Template |
| SCIP: | cec6beff-be12-4313-bcef-0d0cbaa3ae87 Germany |
| WEEE category: | 5. Small Equipment (No external dimension over 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| Ambient air temperature (operation): | -25 ... +55 °C |
| Ambient air temperature (storage): | -40 ... +70 °C |
| Reference ambient air temperature: | 30 °C |
| Degree of protection: | IP20 (IP40 with cover) |
| Pollution degree: | 3 |
| Environmental conditions: | 28 cycles at 55 °C / 90-96 % and 25 °C / 95-100 % |
| Vibration resistance: | 20 cycles with 0.8 In load ? 5g ? 5 to 150 to 5 Hz |
| Shock resistance acc. to IEC 60068-2-27: | 25g ? 2 shocks ? 13 ms |
| Environmental datasheet reference: | 2CDK400030D201 |
| Width in number of modules: | 2 |
| Product net width: | 35 mm |
| Product net height: | 88 mm |
| Product net depth / length: | 69 mm |
| Product net weight: | 0.25 kg |
| Pole net weight: | 0.125 kg |
| Built-in depth (t2): | 69 mm |
| Dielectric test voltage: | 50 / 60 Hz - 1 min 2 kV |
|---|---|
| Ultimate short-circuit breaking capacity (Icu): | 220 V DC - 25 kA / 230 V AC - 15 kA / 400 V AC - 15 kA / 440 V AC - 10 kA / 440 V DC - 10 kA |
| Service short-circuit breaking capacity (Ics): | 220 V DC - 20 kA |
| Power supply connection: | Please observe device polarity |
| Contact position indication: | Red = ON / Green = OFF |
| Energy limiting class: | 3 |
| Electrical endurance: | 20,000 AC cycles |
| Mechanical endurance: | 20,000 cycles |
| Number of protected poles: | 2 |
| Number of poles: | 2P |
| Tightening torque: | 2.8 N·m |
| Terminal type: | Failsafe bi-directional cylinder-lift terminal |
| Actuator marking: | I / O |
| Actuator material: | Insulation Group II, black, sealable |
| Options provided: | Universal current |
| Recommended screwdriver: | Pozidriv 2 |
| Accessories available: | Yes |
| Remarks: | Please note device polarity |
| Connecting capacity: | Busbar 10/10 mm² / Flexible with ferrule |
| Installation size: | acc. to DIN 43880 ? 1 module |
| Terminal type: | Screw terminals |
| Tripping characteristic: | B |
| Rated operational voltage: | 400 V AC / 440 V DC (IEC 60898-1/-2 / IEC 60947-2) |
| Operational voltage: | min. 12 V AC/DC ? max. 440 V AC / 500 V DC |
| Rated insulation voltage (Ui): | 440 V (IEC/EN 60664-1) |
| Impulse withstand voltage (Uimp): | 4 kV (5 kV at 2000 m / 6.2 kV at sea level) |
| Input voltage type: | AC / DC |
| Rated current (In): | 10 A |
| Rated short-circuit capacity: | 10 kA (AC / 230 V / 253 V / 400 V / 440 V DC) |
| Rated conditional short-circuit current (Inc): | 15 kA (230 V / 400 V) |
| Rated frequency: | 50 / 60 Hz, DC |
| Power loss: | 4.06 W / 2.03 W per pole |
| Overvoltage category: | III |
| Housing material: | Insulation Group I, RAL 7035 |
| Maximum operating voltage UL/CSA: | 480Y/277 V AC / 500 V DC |
| Interrupting rating UL1077: | 220 V AC - 10 kA / 277 V AC - 6 kA / 440 V DC - 10 kA / 480Y - 10 kA / 500 V DC - 10 kA |
| Connecting capacity UL/CSA: | Busbar 14-8 AWG / Conductor 14-4 AWG |
| Tightening torque UL/CSA: | 25 in·lb |
