ABB

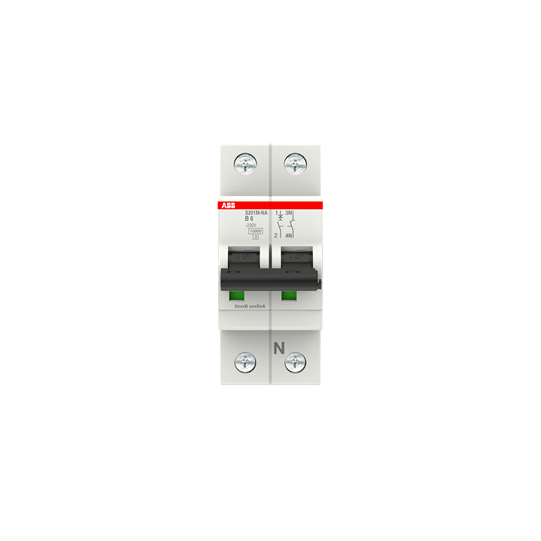

Circuit breaker S200M 1P+N (Neutral on the right) B6 10kA NO - ABB2CDS271103R0065
ABB2CDS271103R0065
€22.33 Excl. Tax
€26.80 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Max Voltage UL/CSA : | 60 V DC / 480Y/277 V AC |
|---|---|
| Breaking Capacity UL1077 : | 6 kA (277 V AC / 480Y) ? 10 kA (60 V DC) |
| Breaking Capacity Icu : | 25 kA (133 V AC), 15 kA (230/400 V) |
| Service Capacity Ics : | 18.8 kA (133 V AC), 7.5 kA (230 V) |
| Overvoltage Category : | III |
| Pollution Degree : | 3 |
| Vibration Resistance : | 5g, 5-150-5 Hz, 20 cycles |
| Shock Resistance (IEC 60068-2-27) : | 25g, 2 shocks of 13 ms |
| Climatic Conditions : | 28 cycles at 55°C (90?96%) / 25°C (95?100%) |
| Material : | Insulation group II, RAL 7035 |
| Width in modular pitches : | 2 |
| Net weight : | 0.25 kg (0.125 kg per pole) |
| RoHS : | Compliant with Directive 2011/65/EU + Amendment 2015/863 |
| RoHS Date : | 01/10/2016 |
| REACH : | Declaration dated 21/08/2024 ? Substances > 0.1% |
| SCIP : | 9008497a-14f6-4cfd-83c5-11cf3bc660d1 (DE) |
| WEEE Category : | Small equipment (< 50 cm) |
| Intended Use : | Professional (B2B) |
| Reference Ambient Temperature : | 30 °C |
| Recommended Screwdriver : | Pozidriv 2 |
| UL/CSA Torque : | 18 in·lb |
| UL/CSA Connection : | Busbar 14?8 AWG / conductor 14?4 AWG |
| Material Quality : | Insulation Group II, RAL 7035 |
| Total : | 4 W |
| Per Pole : | 2 W |
| Dielectric test voltage : | 2 kV / 50-60 Hz - 1 min |
|---|---|
| Rated current (In) : | 6 A |
| Operating voltage : | 12 V AC/DC min to 253 V AC max |
| Rated insulation voltage (Ui) : | 440 V (IEC/EN 60664-1) |
| Rated impulse withstand voltage (Uimp) : | 4 to 6.2 kV depending on altitude |
| Frequency : | 50 / 60 Hz |
| Number of protected poles : | 1 |
| Number of poles : | 1P+N |
| Neutral position : | Right |
| Tripping characteristic : | Curve B |
| Energy limiting class : | 3 |
| Tightening torque : | 2.8 N·m |
| Terminal type : | Screw terminals, lift cylinder bi-directional screws |
| Connection capacity : | rigid, flexible with or without ferrule 0.75 to 35 mm² |
| Power loss : | 2 W per pole, 4 W total |
| Actuator marking : | I / O |
| Actuator material : | Group II, black, sealable |
| Position indicator : | Red (ON) / Green (OFF) |
| Dimensions : | 88 mm (H) x 35 mm (W) x 69 mm (D) |
| Mounting : | DIN 43880 - 2 modules |
| Protection rating : | IP20 (bare), IP40 (in enclosure) |
| Electrical endurance : | 10,000 to 20,000 AC cycles |
| Mechanical endurance : | 20,000 cycles |
| Available accessories : | Yes |
| Operating temperature : | -25 °C to +55 °C |
| Storage temperature : | -40 °C to +70 °C |
In short
Reference ABB2CDS271103R0065
Product Name Circuit breaker S200M 1P+N (Neutral on the right) B6 10kA NO - ABB2CDS271103R0065
