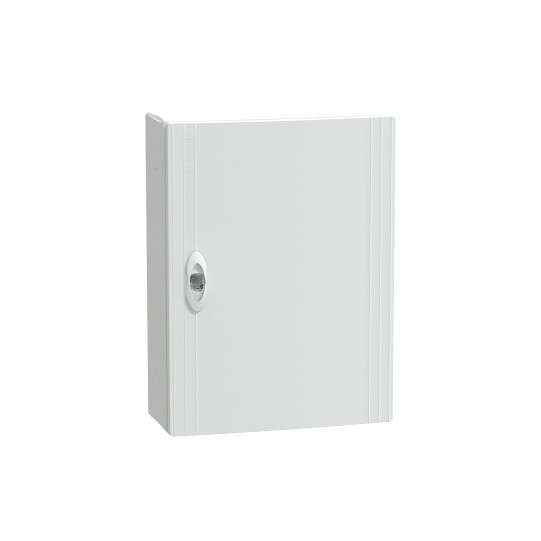

PrismaSeT XS - Surface-mounted enclosure - 2R - 13M - Solid door- LVSXQ213
LVSXQ213
This product is no longer available. Contact us for a suitable replacement solution tailored to your needs.
Technical informations
| Width: | 336 mm |
|---|---|
| Height: | 450 mm |
| Depth: | 151 mm |
| Internal depth: | 135 mm |
| Number of 18 mm modules per row: | 13 |
| Number of horizontal rows: | 2 |
| Total number of 18 mm modules: | 26 |
| Pitch of 9 mm: | 52 |
| Electrical insulation class: | Class II |
| Supplied equipment: | 1 identification label - 1 label protector - 1 terminal block - 1 removable plug - 1 door - 1 DIN rail - 1 rear panel |
| Type of enclosure: | Modular |
| Type of door: | Transparent |
| Type of rail: | Symmetrical DIN |
| Chassis description: | Without mounting plate |
| Power dissipated in W: | 40 W |
| [In] Rated operational current: | 63 A |
| [Ui] Rated insulation voltage: | 400 V |
| Cable entry: | Cable or tube - Cut-out plates - Junction - Removable plates |
| Number of terminal blocks: | 1 ground with 16 departures |
| Terminal block departures: | 8 x 16 mm² + 8 x 6 mm² for ground |
| Connection mode: | Screw connection (ground), 8 10?16 mm² - Screw connection (ground), 8 6 mm² |
| Optional locking description: | Lock option |
| Enclosure material: | Rear part: Technoplastic - Enclosure: Technoplastic - Front plate: Technoplastic - Door: Technoplastic |
| Product weight: | 3,100 kg |
| Color: | Enclosure: White (RAL 9003) - Front plate: White (RAL 9003) - Door: Smoked |
| Market segment: | Residential - Small buildings |
In short
Reference LVSXQ213
Product Name PrismaSeT XS - Surface-mounted enclosure - 2R - 13M - Solid door- LVSXQ213
