SCHNEIDER

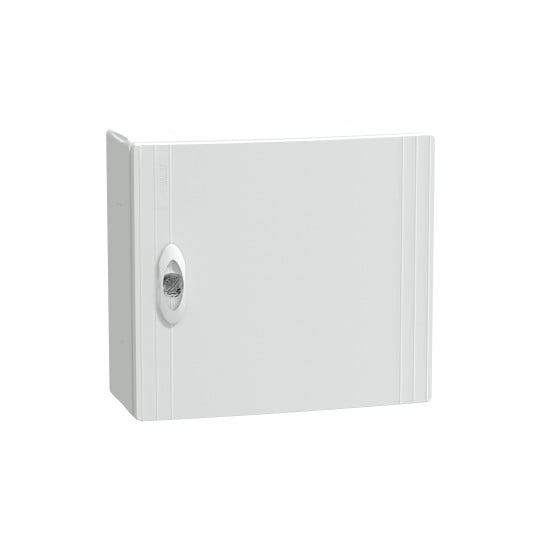

PrismaSeT XS - Surface-mounted enclosure - 1R - 13M - Solid door - LVSXQ113
LVSXQ113
This product is no longer available. Contact us for a suitable replacement solution tailored to your needs.
Technical informations
| Range: | PrismaSeT |
|---|---|
| Product name: | XS |
| Type of product or component: | Enclosure |
| Type of enclosure: | Distribution box |
| Enclosure installation: | Surface-mounted enclosure |
| Product name: | XS |
|---|---|
| Product or component type: | Enclosure |
| Enclosure type: | Distribution enclosure |
| Enclosure mounting: | Surface mounted |
| Width: | Total |
| Height: | Total |
| Depth: | Total |
| Internal depth: | 135 mm |
| Number of 18 mm modules per row: | 13 |
| Number of horizontal rows: | 1 |
| Total number of 18 mm modules: | 13 |
| 9 mm pitches: | 26 |
| Electrical insulation class: | Class II |
| Front plate type: | Modular |
| Door type: | Solid |
| Rail type: | Symmetrical DIN |
| Mounting plate description: | Without mounting plate |
| Power dissipation: | 22 W |
| Rated current [In]: | 63 A |
| Rated insulation voltage [Ui]: | 400 V |
| Cable entry: | Cable or tube |
| Punched plates: | Trunking |
| Removable plates: | Yes |
| Number of terminal blocks: | 1 earth with 16 outputs |
| Distribution block outputs: | 8 x 16 mm² + 8 x 10 mm² for earth |
| Locking options description: | Optional key lock |
| Enclosure material: Rear part: | technoplastic Housing |
| Net weight: | 2.200 kg |
| Color: Housing: | white (RAL 9003) Front plate |
| Market segment: | Residential and small buildings |
In short
Reference LVSXQ113
Product Name PrismaSeT XS - Surface-mounted enclosure - 1R - 13M - Solid door - LVSXQ113
