SCHNEIDER

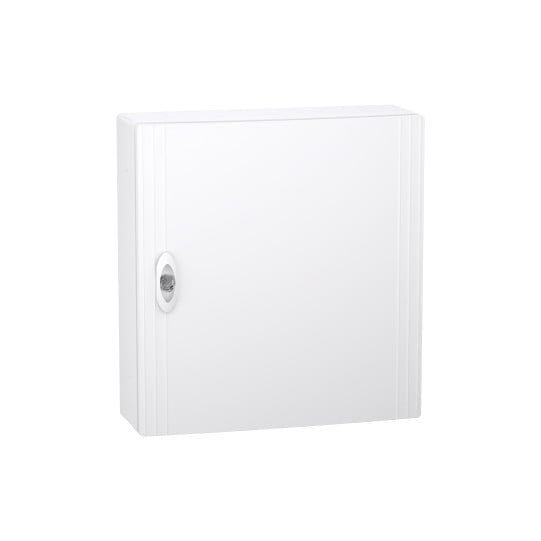

PrismaSeT XS - Surface-mounted enclosure - 2R - 18M - Solid door- LVSXQ218
LVSXQ218
€83.69 Excl. Tax
€100.43 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock more than 100 units – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Width: | 426 mm |
|---|---|
| Height: | 450 mm |
| Depth: | 151 mm |
| Internal depth: | 135 mm |
| Number of 18 mm modules per row: | 18 |
| Number of horizontal rows: | 2 |
| Total number of 18 mm modules: | 36 |
| 9 mm pitch: | 72 |
| Electric insulation class: | Class II |
| Supplied equipment: | 2 identification labels - 2 label protectors - 1 terminal block - 1 breakable seal - 1 door - 2 DIN Rails - 1 back plate |
| Type of panel: | Modular |
| Type of door: | Transparent |
| Type of rail: | Symmetrical DIN |
| Chassis description: | Without mounting plate |
| Power dissipated in W: | 50 W |
| [In] Rated operating current: | 90 A |
| [Ui] Rated insulation voltage: | 400 V |
| Cable entry: | Cable or tube - Cut plates - Junction - Removable plates |
| Number of terminals: | 1 earth with 24 outgoing |
| Outgoing terminals from distributor: | 3 x 25 mm² + 21 x 4 mm² for earth |
| Connection mode: | Screw connection (earth), 3.0 6?25 mm² - Clip-on (earth), 21.0 1.5?4 mm² (flexible) - Clip-on (earth), 21.0 6 mm² (rigid or stranded) |
| Optional locking description: | Lock option |
| Box material: | Rear part: Techno plastic - Box: Techno plastic - Front plate: Techno plastic - Door: Techno plastic |
| Product weight: | 3.600 kg |
| Color: | Box: white (RAL 9003) - Front plate: white (RAL 9003) - Door: smoked |
| Market segment: | Residential - Small buildings |
In short
Reference LVSXQ218
Product Name PrismaSeT XS - Surface-mounted enclosure - 2R - 18M - Solid door- LVSXQ218
