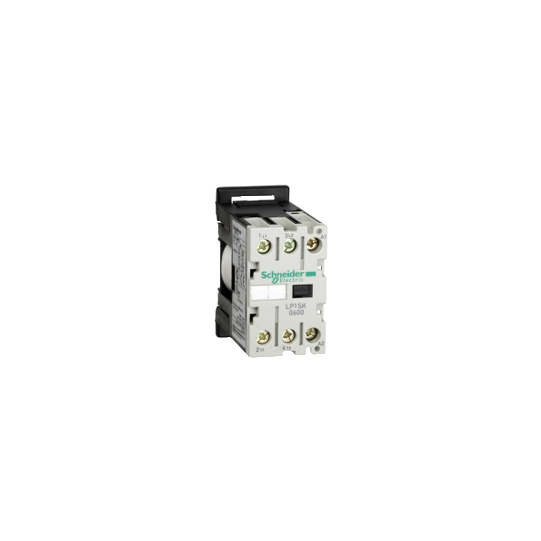

TeSys SK - mini contactor - 2P (2 NO) - AC-1 - 690 V 12 A - 24 V DC coil - LP1SK0600BD

Name: TeSys SK - mini contactor - 2P (2 NO) - AC-1 - 690 V 12 A - 24 V DC coil - LP1SK0600BD
SKU: LP1SK0600BD
Price: 31.91 EUR
Availability: InStock

LP1SK0600BD

26,59 € HT

31,91 € TTC

1 avis

En stock plus de 25 unités – Expédié sous 24/48h

Support technique et interlocuteur unique dédié
Livraison offerte dès 250€ d’achat (France Métropolitaine)
Paiements 100% sécurisés

En bref
Caractéristiques
Détails
Infos
Rappel
Avis
Nous recommandons

Informations techniques

Product or component type :	Mini contactor
Device short name :	LP1SK
Contactor application :	Resistive load
Utilisation category :	AC-1
Poles description :	2P
Pole contact composition :	2 NO
[Ue] rated operational voltage :	690 V AC 50/60 Hz for power circuit
[Ie] rated operational current :	12 A (
Control circuit type :	DC standard
[Uc] control circuit voltage :	24 V DC
[Ith] conventional free air thermal current :	12 A at
Irms rated making capacity :	66 A at 690 V AC conforming to IEC 6094766 A at 690 V AC conforming to NF C 63-110
Rated breaking capacity :	52 A at 52 A at
[Icw] rated short-time withstand current :	50 A
Associated fuse rating :	16 A gI at
Average impedance :	4 mOhm at 50 Hz - Ith 12 A
[Ui] rated insulation voltage :	690 V conforming to CSA C22.2 No 14690 V conforming to BS 5424690 V conforming to IEC 60947690 V conforming to VDE 0110 group C690 V conforming to UL 508
Mounting support :	Rail
Standards :	IEC 60947NF C 63-110VDE 0660BS 5424
Product certifications :	ULCSA
Connections - terminals :	Power circuit
Tightening torque :	0.8 N.m - on connector - with screwdriver pozidriv No 1
Operating time :	4...6 ms coil de-energisation and NO opening8...12 ms coil energisation and NO closing
Mechanical durability :	10 Mcycles
Operating rate :	1200 cyc/h

Control circuit voltage limits :	0.85...1.1 Uc at 0.1...0.75 Uc at
Inrush power in W :	2.2 W at 20 °C
Hold-in power consumption in W :	2.2 W at 20 °C
Heat dissipation :	2.2 W

IP degree of protection :	IP2x conforming to VDE 0106
Protective treatment :	TC conforming to IEC 60068TC conforming to DIN 50015
Ambient air temperature for operation :	-20...50 °C
Ambient air temperature for storage :	-50...70 °C
Operating altitude :	2000 m without derating in temperature
Height :	56 mm
Width :	27 mm
Depth :	55.5 mm
Product weight :	0.132 kg
Warranty period :	18 months

Code EAN :

3389110563931

Contexte :

Contactor

LC1SK06 suitable for single phase motors up to 1.1kW 230V and switching 12A AC1 heating loads.
LC1SKGC suitable for single and three phase motor duty and switching 20A AC1 heating loads.
A variety of control circuit voltages to meet most customer needs
A very adaptable product as an add-on power pole converts a 2 pole unit to 3 pole
A variety of add on auxiliary contacts allows the user to meet all his design variations
Suppression of the coil is achieved with a simple plug in device.
A 2 pole contactor is only 27mm wide which is 40% smaller than an equivalent 3 pole contactor
Can be used to switch single or 3 phase motors

Control Relay

2 pole relays and clip on auxiliary block suitable for use with AC or DC control circuit voltages. Also in theoffer a relay with alternating contacts which only change state each time the coil is energised.

Can be used on any control circuit application where space is at a premium. The relay with alternating contacts makes it possible to automatically split the operating time between 2 circuits of a redundant system and so by regularly energising the ‘safety circuits’, it makes it possible to ensure they are operating correctly.
