SCHNEIDER

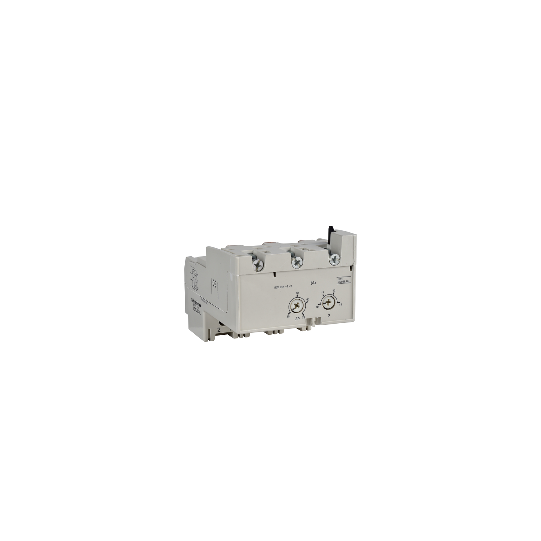

TeSys integral - protection module - AC-43 - thermal-magnetic - 45...63 A - LB1LD03P61
LB1LD03P61
This product is no longer available. Contact us for a suitable replacement solution tailored to your needs.
Technical informations
| Range of product: | Integral 63 |
|---|---|
| Range: | TeSys |
| Device short name: | LB1LD |
| Range compatibility: | TeSys Integral contactor breaker |
| Product or component type: | Protection module |
| Poles description: | 3P |
| Utilisation category: | AC-43 |
| [Ue] rated operational voltage: | 690 V AC |
| Trip unit rating: | 45...63 A |
| Magnetic tripping current: | 945 A |
| Trip unit technology: | Thermal-magnetic |
| Protection type: | Phase imbalance |
| Thermal overload class: | Class 20 |
| Motor power kW: | 15 kW at 220...240 V AC 50/60 Hz33 kW at 400...415 V AC 50/60 Hz33 kW at 440 V AC 50/60 Hz40 kW at 480...525 V AC 50/60 Hz55 kW at 600...690 V AC 50/60 Hz |
|---|---|
| Product weight: | 0.78 kg |
| Compatibility code: | LB1LD |
In short
Reference LB1LD03P61
Product Name TeSys integral - protection module - AC-43 - thermal-magnetic - 45...63 A - LB1LD03P61
