SCHNEIDER

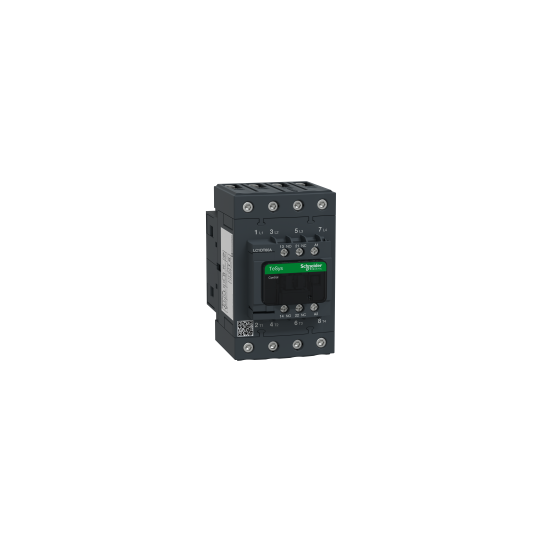

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 60 A - 24 V AC 50/60 Hz coil - LC1DT60AB7
LC1DT60AB7
€125.01 Excl. Tax
€150.01 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Range of product: | TeSys DTeSys Deca |
|---|---|
| Range: | TeSysTeSys Deca |
| Product name: | TeSys DTeSys Deca |
| Product or component type: | Contactor |
| Device short name: | LC1D |
| Contactor application: | Resistive load |
| Utilisation category: | AC-1 |
| Poles description: | 4P |
| Pole contact composition: | 4 NO |
| [Ue] rated operational voltage: | Power circuit: Power circuit: |
| [Ie] rated operational current: | 60 A (at |
| Control circuit type: | AC at 50/60 Hz |
| [Uc] control circuit voltage: | 24 V AC 50/60 Hz |
| Auxiliary contact composition: | 1 NO + 1 NC |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 60947 |
| Overvoltage category: | III |
| [Ith] conventional free air thermal current: | 10 A (at 60 °C) for signalling circuit60 A (at 60 °C) for power circuit |
| Irms rated making capacity: | 140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1800 A at 440 V for power circuit conforming to IEC 60947 |
| Rated breaking capacity: | 800 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current: | 320 A 40 °C - 10 s for power circuit720 A 40 °C - 1 s for power circuit72 A 40 °C - 10 min for power circuit165 A 40 °C - 1 min for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit |
| Associated fuse rating: | 10 A gG for signalling circuit conforming to IEC 60947-5-180 A gG at 80 A gG at |
| Average impedance: | 1.6 mOhm - Ith 60 A 50 Hz for power circuit |
| [Ui] rated insulation voltage: | Power circuit: 600 V CSA certifiedPower circuit: 600 V UL certifiedSignalling circuit: 690 V conforming to IEC 60947-1Signalling circuit: 600 V CSA certifiedSignalling circuit: 600 V UL certifiedPower circuit: 690 V conforming to IEC 60947-4-1 |
| Electrical durability: | 1.4 Mcycles 60 A AC-1 at Ue |
| Power dissipation per pole: | 5.8 W AC-1 |
| Protective cover: | With |
| Mounting support: | RailPlate |
| Standards: | CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 508IEC 60335-1 |
| Product certifications: | GLLROS (Lloyds register of shipping)BVCSAULRINACCCGOSTDNV |
| Connections - terminals: | Control circuit: screw clamp terminals 2 cable(s) 1...2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1...4 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1...4 mm²flexible without cable endControl circuit: screw clamp terminals 1 cable(s) 1...4 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1...4 mm²solid without cable endControl circuit: screw clamp terminals 2 cable(s) 1...4 mm²solid without cable endPower circuit: EverLink BTR screw connectors 1 cable(s) 1...35 mm²flexible without cable endPower circuit: EverLink BTR screw connectors 2 cable(s) 1...25 mm²flexible without cable endPower circuit: EverLink BTR screw connectors 1 cable(s) 1...35 mm²flexible with cable endPower circuit: EverLink BTR screw connectors 2 cable(s) 1...25 mm²flexible with cable endPower circuit: EverLink BTR screw connectors 1 cable(s) 1...35 mm²solid without cable endPower circuit: EverLink BTR screw connectors 2 cable(s) 1...25 mm²solid without cable end |
| Tightening torque: | Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmControl circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2Power circuit: 8 N.m - on screw clamp terminals - cable 25...35 mm² hexagonal screw head 4 mmPower circuit: 5 N.m - on screw clamp terminals - cable 1...25 mm² hexagonal screw head 4 mmControl circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 |
| Operating time: | 4...19 ms opening12...26 ms closing |
| Safety reliability level: | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Mechanical durability: | 6 Mcycles |
| Maximum operating rate: | 3600 cyc/h 60 °C |
| Coil technology: | Without built-in suppressor module |
|---|---|
| Control circuit voltage limits: | 0.3...0.6 Uc (-40...70 °C):drop-out AC 50/60 Hz0.8...1.1 Uc (-40...60 °C):operational AC 50 Hz0.85...1.1 Uc (-40...60 °C):operational AC 60 Hz1...1.1 Uc (60...70 °C):operational AC 50/60 Hz |
| Inrush power in VA: | 140 VA 60 Hz cos phi 0.75 (at 20 °C)160 VA 50 Hz cos phi 0.75 (at 20 °C) |
| Hold-in power consumption in VA: | 13 VA 60 Hz cos phi 0.3 (at 20 °C)15 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation: | 4...5 W at 50/60 Hz |
| Auxiliary contacts type: | type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 type mirror contact 1 NC conforming to IEC 60947-4-1 |
| Signalling circuit frequency: | 25...400 Hz |
| Minimum switching current: | 5 mA for signalling circuit |
| Minimum switching voltage: | 17 V for signalling circuit |
| Non-overlap time: | 1.5 ms on de-energisation between NC and NO contact1.5 ms on energisation between NC and NO contact |
| Insulation resistance: | > 10 MOhm for signalling circuit |
| Contact compatibility: | M6 |
| Compatibility code: | LC1D |
In short
Reference LC1DT60AB7
Product Name TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 60 A - 24 V AC 50/60 Hz coil - LC1DT60AB7
Range TeSys
