SCHNEIDER

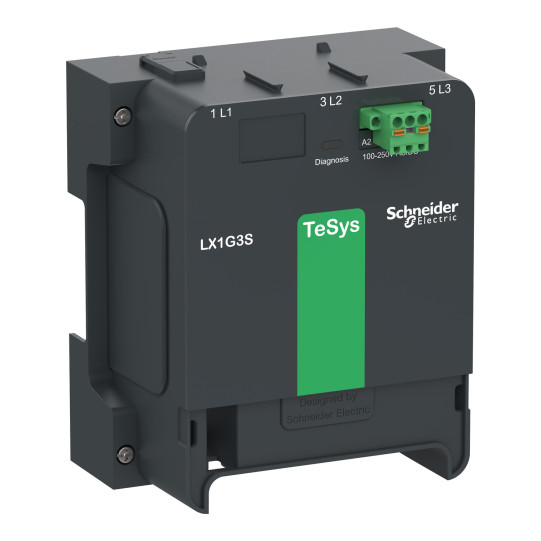

Standard Control Module 100-250V AC/DC for 3 Poles TeSys G400/500 - LX1G3SKUEN
LX1G3SKUEN
€193.63 Excl. Tax
€232.36 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Range: | TeSys |
|---|---|
| Product or equipment type: | Contactor coil |
| Device name: | LX1G |
| Contact description: | 4P |
| Range compatibility: | TeSys G LX1G contactor coil |
| Product compatibility: | LC1G400...500 |
| [Uc] control circuit voltage: | 100...250 V AC/DC 2 phases |
| Operating time: | 20?35 ms opening, 40...55 ms closing |
| Mechanical life: | 5 million cycles |
| Maximum operating speed: | 600 cycles/min at 60 °C |
| Coil technology: | Integrated bidirectional peak limitation |
| Control circuit voltage range: | Operational |
| Loss of level: | 0...0.45 Uc (at 60 °C) |
| Wiring method: | |
| Control circuit: | push-in connection 1 cable(s) 0.2?2.5 mm² multi-strand rigid without terminal AWG 26...AWG 12 |
| Control circuit: | push-in connection 1 cable(s) 0.25?2.5 mm² flexible with terminal AWG 24?AWG 14 |
| Control circuit: | push-in connection 2 cable(s) 0.5?1.0 mm² rigid or semi-rigid with terminal AWG 20 to AWG 18 |
| Inrush power in VA: | 880 VA at 240 V DC, 60 Hz |
| Inrush power in W: | 690.0 W DC |
| Average holding power in VA: | 11.0 VA at 240 V DC, 60 Hz |
| Average holding power in W: | 6.2 W for DC network |
| Protection degree IP: | IP20 conforming to IEC 60529 |
|---|---|
| Operating altitude: | 3000 m without derating, 5000 m with derating factor |
| Electromagnetic compatibility: | EMC immunity conforming to IEC 60947-4-1, Emission test criterion A conforming to IEC 60947-4-1 |
| Immunity to radiated radio-frequency interference: | Test level |
| Immunity to voltage dips and interruptions: | Conforming to SEMI F47 |
| Standards: | EN/IEC 60947-4-1, UL 60947-4-1A, CSA C22.2 No 60947-4-1 |
| Pollution degree: | 3 conforming to IEC 60947-1 |
| Ambient operating temperature: | -25?60 °C |
| Ambient storage temperature: | -60?80 °C |
| Ambient temperature around the device: | -40?70 °C at Uc |
| Height: | 167 mm |
| Width: | 140 mm |
| Depth: | 93 mm |
| Lot quantity: | 1 |
In short
Reference LX1G3SKUEN
Product Name Standard Control Module 100-250V AC/DC for 3 Poles TeSys G400/500 - LX1G3SKUEN
