SCHNEIDER

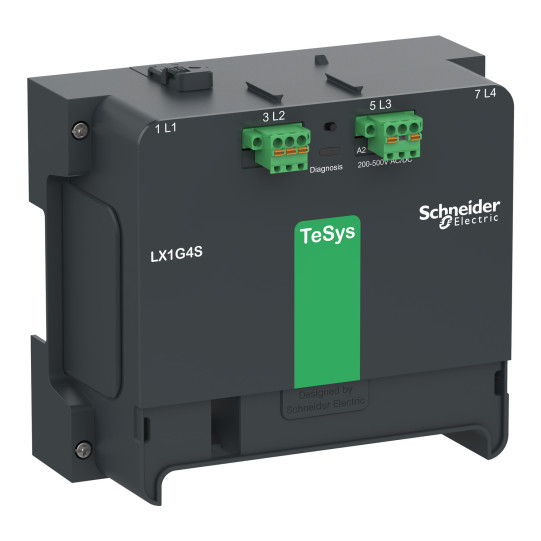

Advanced Control Module 200-500V AC/DC for 4 Poles TeSys G400/500 - LX1G4SLSEA
LX1G4SLSEA
€293.51 Excl. Tax
€352.21 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Range: | TeSys |
|---|---|
| Product or equipment type: | Contactor coil |
| Device name: | LX1G |
| Poles description: | 4P |
| Range compatibility: | TeSys G LX1G contactor coil |
| Product compatibility: | LC1G400...500 |
| [Uc] control circuit voltage: | 200...500 V AC/DC, 2 phases |
| Operating time: | 20...35 ms opening, 40...55 ms closing |
| Mechanical life: | 5 million cycles |
| Maximum operating speed: | 600 cycles/min at 60°C |
| Coil technology: | Integrated bi-directional peak limiting |
| Control circuit voltage range: | Operational |
| Power loss: | 0...0.45 Uc (at 60°C) |
| Connection mode: | |
| Control circuit: | Push-in connection 1 cable(s) 0.2?2.5 mm² solid or stranded without ferrule AWG 26...AWG 12 Control circuit |
| Inrush power: | 400 VA at 480 V DC, 60 Hz |
| Inrush power: | 260.0 W DC |
| Average hold-in power: | 14.9 VA at 480 V DC, 60 Hz |
| Average hold-in power: | 4.8 W for DC network |
| Control circuit: | Push-in connection 1 cable(s) 0.2?2.5 mm² solid or stranded without ferrule AWG 26...AWG 12 |
| Control circuit: | Push-in connection 1 cable(s) 0.25?2.5 mm² flexible with ferrule AWG 24?AWG 14 |
| Control circuit: | Push-in connection 2 cable(s) 0.5?1.0 mm² solid or semi-rigid with ferrule AWG 20 to AWG 18 |
| Range: | TeSys G |
|---|---|
| Product type: | Contactor coil |
| Device name: | LX1G |
| Poles: | 3P |
| Range compatibility: | TeSys G LX1G contactor coil |
| Product compatibility: | LC1G115...225 |
| [Uc] control circuit voltage: | 100...250 V AC/DC, 50/60 Hz |
| Operating time: | 20...35 ms opening, 40...55 ms closing |
| Mechanical durability: | 5 million cycles |
| Maximum operating rate: | 600 cycles/min at 60°C |
| Coil technology: | Built-in bidirectional peak limiting |
| Control circuit voltage limits: | Operational 0.8...1.1 Uc (at 60°C), Drop-out 0...0.45 Uc (at 60°C) |
| Connection method: | |
| Control circuit: | Push-in connection 1 cable(s) 0.2?2.5 mm² solid or stranded without cable end sleeve AWG 26...AWG 12 Control circuit |
| Control circuit: | Push-in connection 1 cable(s) 0.2?2.5 mm² solid or stranded without cable end sleeve AWG 26...AWG 12 |
| Control circuit: | Push-in connection 1 cable(s) 0.25?2.5 mm² flexible with cable end sleeve AWG 24?AWG 14 |
| Control circuit: | Push-in connection 2 cable(s) 0.5?1.0 mm² rigid or semi-rigid with cable end sleeve AWG 20 to AWG 18 |
In short
Reference LX1G4SLSEA
Product Name Advanced Control Module 200-500V AC/DC for 4 Poles TeSys G400/500 - LX1G4SLSEA
