SCHNEIDER

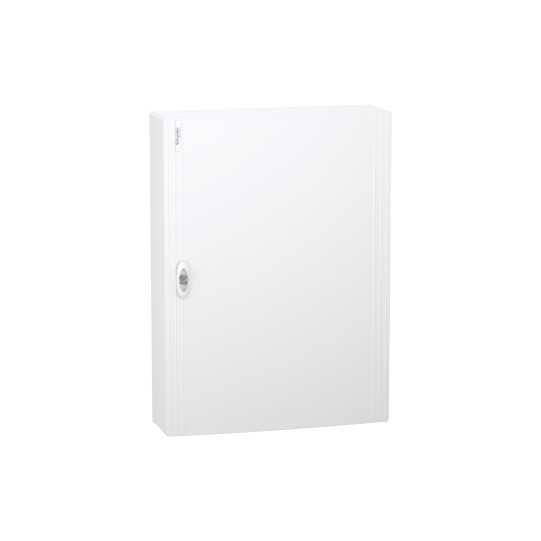

PrismaSeT XS - Surface-mounted enclosure - 4R - 24M - Solid door- LVSXQ424
LVSXQ424
€280.95 Excl. Tax
€337.14 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock more than 25 units – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Range: | PrismaSeT |
|---|---|
| Product name: | XS |
| Type of product or component: | Enclosure |
| Type of enclosure: | Distribution box |
| Enclosure installation: | Surface-mounted enclosure |
| Width: | 550 mm |
|---|---|
| Height: | 750 mm |
| Depth: | 155 mm |
| Internal depth: | 135 mm |
| Number of 18 mm modules per row: | 24 |
| Number of horizontal rows: | 4 |
| Total number of 18 mm modules: | 96 |
| 9 mm pitch: | 192 |
| Electric insulation class: | Class II |
| Supplied equipment: | 4 identification labels - 4 label protectors - 1 terminal block - 1 breakable seal - 1 door - 4 DIN Rails - 6 cable fixing accessories - 1 back plate |
| Panel type: | Modular |
| Door type: | Transparent |
| Rail type: | Symmetrical DIN |
| Chassis description: | Without mounting plate |
| Power dissipated in W: | 87 W |
| [In] Rated operating current: | 125 A |
| [Ui] Rated insulation voltage: | 400 V |
| Cable entry: | Cable or tube - Cut plates - Junction - Removable plates |
| Number of terminals: | 1 earth with 38 outgoing |
| Outgoing terminals from distributor: | 6 x 25 mm² + 32 x 4 mm² for earth |
| Connection mode: | Screw connection (earth), 6,0 6?25 mm², Clip-on (earth), 32,0 1,5?4 mm² (flexible), Clip-on (earth), 32,0 6 mm² (rigid or stranded) |
| Optional locking description: | Lock option |
| Enclosure material: | Rear part: Techno plastic - Enclosure: Techno plastic - Front plate: Techno plastic - Door: Techno plastic |
| Product weight: | 14,180 kg |
| Color: | Enclosure: white (RAL 9003) - Front plate: white (RAL 9003) - Door: colorless |
| Market segment: | Residential - Small buildings |
In short
Reference LVSXQ424
Product Name PrismaSeT XS - Surface-mounted enclosure - 4R - 24M - Solid door- LVSXQ424
