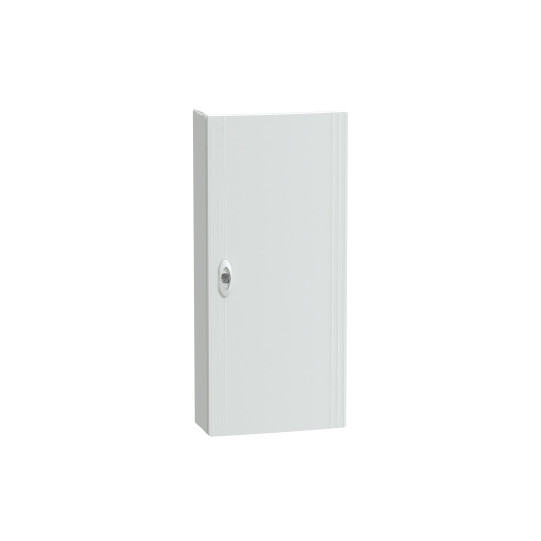

PrismaSeT XS - Surface-mounted enclosure - 4R - 13M - Solid door- LVSXQ413
LVSXQ413
This product is no longer available. Contact us for a suitable replacement solution tailored to your needs.
Technical informations
| Range: | PrismaSeT |
|---|---|
| Product name: | XS |
| Type of product or component: | Enclosure |
| Type of enclosure: | Distribution box |
| Enclosure installation: | Surface-mounted enclosure |
| Width: | 336 mm |
|---|---|
| Height: | 750 mm |
| Depth: | 151 mm |
| Internal depth: | 135 mm |
| Number of 18 mm modules per row: | 13 |
| Number of horizontal rows: | 4 |
| Total number of 18 mm modules: | 52 |
| 9 mm pitch: | 104 |
| Electric insulation class: | Class II |
| Supplied equipment: | 4 identification labels - 4 label protectors - 1 terminal block - 1 breakable seal - 1 door - 4 DIN Rails - 1 back plate |
| Panel type: | Modular |
| Door type: | Transparent |
| Rail type: | Symmetrical DIN |
| Chassis description: | Without mounting plate |
| Power dissipated in W: | 53 W |
| [In] Rated operating current: | 90 A |
| [Ui] Rated insulation voltage: | 400 V |
| Cable entry: | Cable or tube - Cut plates - Junction - Removable plates |
| Number of terminals: | 1 earth with 32 outgoing |
| Outgoing terminals from distributor: | 4 x (4 x 16 mm² + 4 x 6 mm²) for earth |
| Connection mode: | Screw connection (earth), 16 10?16 mm², Screw connection (earth), 16 6 mm² |
| Optional locking description: | Lock option |
| Enclosure material: | Rear part: Techno plastic - Enclosure: Techno plastic - Front plate |
| Product weight: | 4.850 kg |
| Color: | Enclosure: white (RAL 9003) - Front plate: white (RAL 9003) - Door:smoked |
| Market segment: | Residential - Small buildings |
In short
Reference LVSXQ413
Product Name PrismaSeT XS - Surface-mounted enclosure - 4R - 13M - Solid door- LVSXQ413
