SCHNEIDER

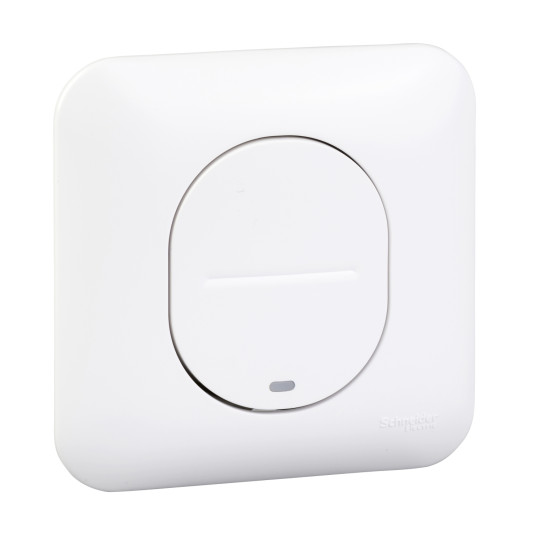

Ovalis - pushbutton - pushbutton - 10 A - white - S265276
S265276
This product is no longer available. Contact us for a suitable replacement solution tailored to your needs.
Technical informations
| Range of product: | Ovalis |
|---|---|
| Product or component type: | Push-button |
| Device presentation: | Complete product |
| Switch additional information: | Impulse relay control |
| Switch application: | Push-button |
| Colour tint: | White (RAL 9003) |
| Type of packing: | Paint cover |
| Quantity per set: | 10 pieces |
| Sale per indivisible quantity: | 1 |
| Number of terminals: | 2 screwless terminals |
| Light source: | LED 1.5 mA |
| Device mounting: | Flush |
|---|---|
| Number of rocker: | 1 |
| Actuator: | Push-button |
| Fixing mode: | By claws |
| Surface finish: | Satin |
| Rated current: | 10 A at 250 V AC 50/60 Hz |
| Minimum load breaking capacity: | 200 operations 1.25 In and 1.1 Un with cos ? = 0.3 |
| Service life in cycles: | 20000 cycles at ON and OFF at rated voltage with cos ? = 0.6 |
| Electrical durability: | 20000 cycles |
| Shape of screw head: | Pozidriv No 1 |
| Clamping connection capacity: | 1 x 1.5...2 x 2.5 mm² for rigid cable(s)1 x 1.5...2 x 2.5 mm² for flexible cable(s)1 x 1.5...2 x 2.5 mm² for stranded cable(s) |
| Wire stripping length: | 12 mm |
| Local signalling: | Luminous |
| Material: | Thermoplastic ABS-UV stabilised: centre platePBT (polybutylene terephthalate) GF30: support framePC (polycarbonate) GF10 FR: casing |
| Height: | 71 mm |
| Width: | 71 mm |
| Depth: | 42 mm |
| Embedding depth: | 26.5 mm |
| Product weight: | 0.046 kg |
| Targeted channel: | Professional |
In short
Reference S265276
Product Name Ovalis - pushbutton - pushbutton - 10 A - white - S265276
