SCHNEIDER

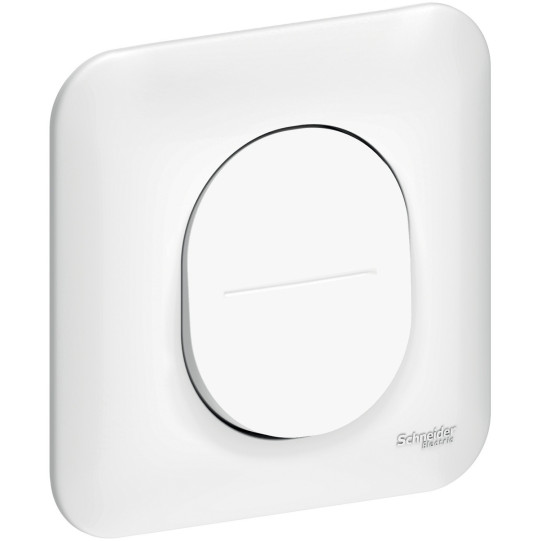

Ovalis - rocker switch - 2-way - 10 AX - white - siliconproof - S260204
S260204
This product is no longer available. Contact us for a suitable replacement solution tailored to your needs.
Technical informations
| Range of product: | Ovalis |
|---|---|
| Product or component type: | Switch |
| Device presentation: | Complete product |
| Switch additional information: | With internal power connection |
| Switch application: | On/off switching |
| Colour tint: | White (RAL 9003) |
| Type of packing: | Paint cover |
| Quantity per set: | 10 pieces |
| Sale per indivisible quantity: | 1 |
| Number of terminals: | 3 screwless terminals |
| Device mounting: | Flush |
|---|---|
| Switch function: | 1-pole 2-way |
| Number of rocker: | 1 |
| Actuator: | Rocker |
| Fixing mode: | By screws |
| Surface finish: | Satin |
| Rated current: | 10 AX at 250 V AC 50 Hz |
| Load type: | Load for energy saving lamps with ballast: 100 W |
| Minimum load breaking capacity: | 200 operations 1.25 In and 1.1 Un with cos ? = 0.3 |
| Service life in cycles: | 20000Â cycles at ON and OFF at rated voltage with cos ? = 0.6 |
| Electrical durability: | 20000Â cycles |
| Shape of screw head: | Pozidriv No 1 |
| Clamping connection capacity: | 1 x 1.5...2 x 2.5 mm² for rigid cable(s)1 x 1.5...2 x 2.5 mm² for flexible cable(s)1 x 1.5...2 x 2.5 mm² for stranded cable(s) |
| Wire stripping length: | 12Â mm |
| Material: | Thermoplastic ABS-UV stabilised: centre platePBT (polybutylene terephthalate) GF30: support framePC (polycarbonate) GF10 FR: casing |
| Height: | 71Â mm |
| Width: | 71Â mm |
| Depth: | 33.6Â mm |
| Embedding depth: | 18.75Â mm |
| Product weight: | 0.04Â kg |
| Targeted channel: | Professional |
In short
Reference S260204
Product Name Ovalis - rocker switch - 2-way - 10 AX - white - siliconproof - S260204
