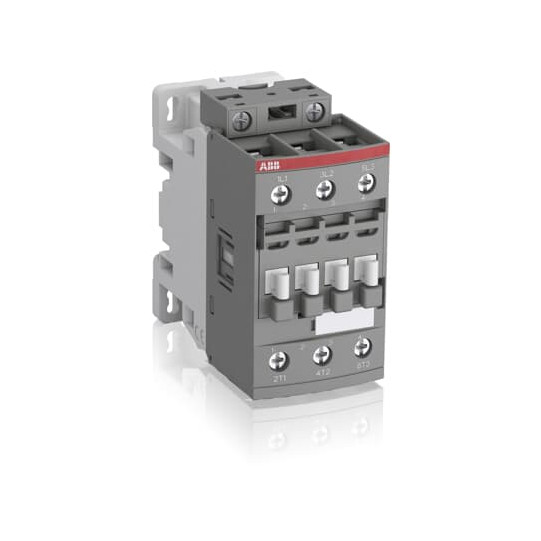

AF Series Contactor 38A (AC3), 3P, 100-250V AC/DC - ABB1SBL297001R1300
ABB1SBL297001R1300
€62.78 Excl. Tax
€75.34 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Product Net Width: | 45 mm |
|---|---|
| Product Net Height: | 86 mm |
| Product Net Depth / Length: | 86 mm |
| Product Net Weight: | 0.31 kg |
| Number of Main Contacts NO: | 3 |
|---|---|
| Number of Main Contacts NC: | 0 |
| Number of Auxiliary Contacts NO: | 0 |
| Number of Auxiliary Contacts NC: | 0 |
| Number of Poles: | 3P |
| Standards and Certifications: | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1 |
| Rated Voltage: | Main Circuit 690 V |
| Rated Frequency: | Control Circuit 50 / 60 Hz, Main Circuit 50 / 60 Hz |
| Conventional Free-Air Thermal Current (Ith): | according to IEC 60947-4-1, Open Contactors ? = 40 °C 50 A |
| Rated Operational Current AC-1 (Ie): | (690 V) 40 °C 50 A, 60 °C 42 A, 70 °C 37 A |
| Rated Operational Current AC-3 (Ie): | (415 V) 38 A, (440 V) 38 A, (500 V) 33 A, (690 V) 24 A, (380/400 V) 38 A, (220/230/240 V) 40 A |
| Rated Operational Current AC-3e (Ie): | same values as AC-3 |
| Rated Operational Current DC-1 (Ie): | (110 V) 2/3 Poles in Series up to 50 A, (220 V) 3 Poles in Series up to 50 A, (72 V) 1 Pole 50 A |
| Rated Operational Current DC-3 (Ie): | same values as DC-1 |
| Rated Operational Current DC-5 (Ie): | (110 V) up to 50 A, (220 V) up to 25 A, (72 V) 1 Pole 25 A |
| Rated Operational Power AC-3 (Pe): | (400 V) 18.5 kW, (415/440/500/690 V) 22 kW, (220/230/240 V) 11 kW |
| Rated Operational Power AC-3e (Pe): | same values as AC-3 |
| Rated Short-Time Withstand Current (Icw): | up to 700 A (1 s), 350 A (10 s), 50 A (15 min) |
| Maximum Breaking Capacity: | cos ? = 0.45 (cos ? = 0.35 for Ie > 100 A), (440 V) 500 A, (690 V) 200 A |
| Rated Insulation Voltage (Ui): | according to IEC 690 V, according to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (Uimp): | 6 kV |
| Max Electrical Switching Frequency: | (AC-1) 600 cycles/hour, (AC-2/AC-4) 150 cycles/hour, (AC-3) 1200 cycles/hour |
| Max Mechanical Switching Frequency: | 3600 cycles/hour |
| Rated Control Circuit Voltage (Uc): | 100 ... 250 V (50/60 Hz or DC) |
| Power Loss: | AC-1 per pole 2.4 W, AC-3 per pole 1.3 W |
| Operating Time: | Coil OFF to NC contact closing |
| DIN Rail Mounting: | TH35-15 and TH35-7.5 according to IEC 60715 |
| Mounting with Screws (not included): | 2 x M4 screws diagonally placed |
| Main Circuit Connection Capacity: | Flexible with ferrule 1.5 ... 10 mm², Rigid 2.5 ... 10 mm² |
| Control Circuit Connection Capacity: | Flexible 0.75 ... 2.5 mm², Rigid 1 ... 2.5 mm² |
| Wire Stripping Length: | Control Circuit 10 mm, Main Circuit 14 mm |
| Protection Degree: | according to IEC 60529, IEC 60947-1, EN 60529, Coil terminals IP20, Main terminals IP20 |
| Tightening Torque: | Control Circuit 1.2 N·m, Main Circuit 2.5 N·m |
| Terminal Type: | Screw Terminals |
| Product Type: | Block Contactor |
In short
Reference ABB1SBL297001R1300
Product Name AF Series Contactor 38A (AC3), 3P, 100-250V AC/DC - ABB1SBL297001R1300
