ABB

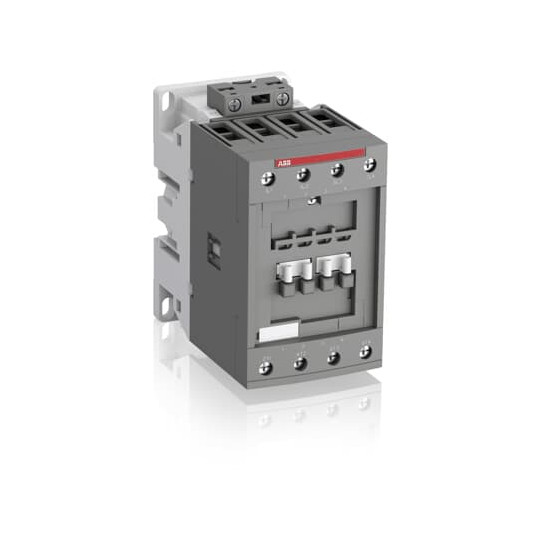

AF Series Contactor 100A (AC1), 3P, 100-250V AC/DC - ABB1SBL367201R1300
ABB1SBL367201R1300
€188.93 Excl. Tax
€226.72 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Product Net Width: | 70 mm |
|---|---|
| Product Net Height: | 125.5 mm |
| Product Net Depth / Length: | 116 mm |
| Product Net Weight: | 1.17 kg |
| Number of Main Contacts NO: | 4 |
|---|---|
| Number of Main Contacts NC: | 0 |
| Number of Auxiliary Contacts NO: | 0 |
| Number of Auxiliary Contacts NC: | 0 |
| Number of Poles: | 4P |
| Standards and Certifications: | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-1 |
| Voltage: | Main circuit 690 V |
| Rated Frequency (f): | Control circuit 50 / 60 Hz, Main circuit 50 / 60 Hz |
| Conventional Free-Air Thermal Current (Ith): | 105 A at 40 °C |
| Rated Operational Current AC-1 (Ie): | 100 A at 40 °C, 80 A at 60 °C, 70 A at 70 °C |
| Rated Operational Current AC-3 (Ie): | 53 A at 415V/440V/380-400V/220-240V, 45 A at 500V, 35 A at 690V (at 60 °C) |
| Rated Operational Power AC-3 (Pe): | 30 kW at 415V/440V/500V/690V, 22 kW at 380-400V, 15 kW at 220-240V |
| Rated Short-Circuit Withstand Current (Icw): | 10 s - 600 A, 15 min - 110 A, 1 min - 250 A, 1 s - 1000 A, 30 s - 350 A |
| Maximum Breaking Capacity: | 950 A at 440V, 600 A at 690V (cos ?=0.45) |
| Rated Insulation Voltage (Ui): | 690 V (IEC), 600 V (UL/CSA) |
| Rated Impulse Withstand Voltage (Uimp): | 6 kV |
| Maximum Electrical Switching Frequency (AC-1): | 600 cycles per hour |
| Maximum Mechanical Switching Frequency: | 3600 cycles per hour |
| Rated Control Circuit Voltage (Uc): | 100?250 V (50 Hz, 60 Hz, DC) |
| Coil Consumption: | 4 VA AC, 2 W DC |
| Power Loss: | 6.3 W (AC-1), 1.7 W (AC-3) per pole |
| DIN Rail Mounting: | TH35-15 according to IEC 60715 |
| Mounting by Screws: | 2 x M4 or 2 x M6 diagonally |
| Main Circuit Connecting Capacity: | Flexible with ferrule 4?35 mm², Rigid 6?35 mm² |
| Control Circuit Connecting Capacity: | Flexible with ferrule 0.75?2.5 mm², Rigid 1?2.5 mm² |
| Wire Stripping Length: | 10 mm (control), 16 mm (main circuit) |
| Protection Index: | IP20 (coil), IP10 (main terminals) |
| Recommended Screwdriver: | Pozidriv PZ |
| Tightening Torque: | 1.2 N·m (control), 4 N·m (main circuit) |
| Terminal Type: | Screw terminals |
| Product Type: | Block Contactor |
In short
Reference ABB1SBL367201R1300
Product Name AF Series Contactor 100A (AC1), 3P, 100-250V AC/DC - ABB1SBL367201R1300
