SCHNEIDER

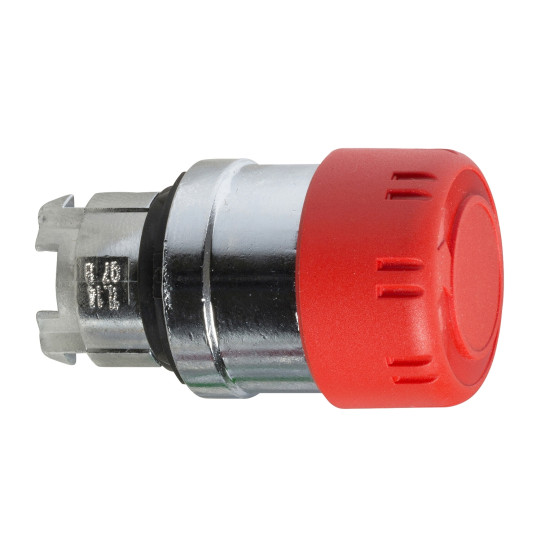

red Ø30 Emergency switching off pushbutton head Ø22 latching turn release - ZB4BS44
ZB4BS44
Ce produit n'est plus disponible. Contactez-nous pour une solution de remplacement adaptée à vos besoins.
Informations techniques
| Range of product : | Harmony XB4 |
|---|---|
| Product or component type : | Head for emergency switching off push-button |
| Device short name : | ZB4 |
| Bezel material : | Chromium plated metal |
| Mounting diameter : | 22 mm |
| Sale per indivisible quantity : | 1 |
| Shape of signaling unit head : | Round |
| Type of operator : | mechanical latching |
| Reset : | Turn to release |
| Operator profile : | Red mushroom Ø 30 mm, unmarked |
| Head type : | Standard |
| CAD overall width : | 30 mm |
|---|---|
| CAD overall height : | 30 mm |
| CAD overall depth : | 57 mm |
| Product weight : | 0.066 kg |
| Resistance to high pressure washer : | 7000000 Pa at 55 °C, distance |
| Mechanical durability : | 300000 cycles |
| Electrical composition code : | C7 for C8 for C11 for C15 for C10 for |
| Main group : | Switching off |
| Group of product : | Emerg. swit. off turn to rel. |
| Cap/operator or lens colour : | Red |
| Marking : | Unmarked |
| Device presentation : | Basic element |
| Compatibility code : | ZB4 |
En bref
Référence ZB4BS44
Nom du produit red Ø30 Emergency switching off pushbutton head Ø22 latching turn release - ZB4BS44
