ABB

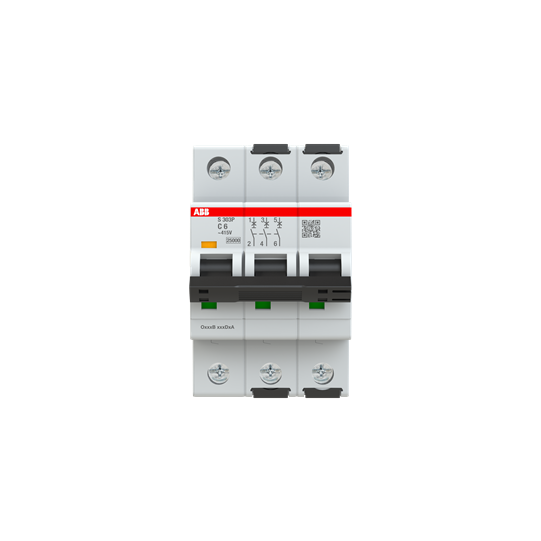

Interruptor Automático en Miniatura - S300P - 3P - 6 A - C - (415 V AC) 100 kA - ABB2CDS383001R0064
ABB2CDS383001R0064
74,67 € Impuestos NO Incl.
89,60 € Impuestos incluídos
Impuestos NO Incl.
Impuestos NO Incl.
Impuestos incl.
Impuestos incl.
You save
En stock – Expedición en 24/48 horas
- Asistencia técnica y contacto con un interlocutor exclusivo
- Envío gratis a partir de 250€ de compra (Francia continental)
- Pagos 100% seguros
Informaciones técnicas
| Ancho en número de espacios modulares: | 3.0 |
|---|---|
| Ancho neto del producto: | 52.5 mm |
| Altura neta del producto: | 88 mm |
| Profundidad / longitud neta del producto: | 69 mm |
| Peso neto del producto: | 0.36 kg |
| Peso neto por polo: | 0.124 kg |
| Profundidad de instalación (t2): | 69 mm |
| Dielectric Test Voltage: | 50 / 60 Hz - 1 min 2 kV |
|---|---|
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): | (400 V AC) 100 kA (415 V AC) 100 kA (440 V AC) 100 kA (72 V DC) 25 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics): | (400 V AC) 100 kA (440 V AC) 100 kA |
| Power Supply Connection: | Arbitrary |
| Contact Position Indication: | Red = ON / Green = OFF |
| Electrical Endurance: | 20,000 AC cycles |
| Mechanical Endurance: | 20,000 cycles |
| Number of Protected Poles: | 3 |
| Number of Poles: | 3P |
| Tightening Torque: | 2.8 N·m |
| Actuator Type: | Toggle |
| Screw Terminal Type: | Failsafe Bi-directional Cylinder-lift Terminal |
| Actuator Marking: | I / O |
| Actuator Material: | Insulation Group II, black, sealable |
| Recommended Screwdriver: | Pozidriv 2 |
| Accessories Available: | Yes |
| Connecting Capacity: | Busbar 10/10 mm² Flexible with ferrule 0.75 ... 25 mm² Flexible 0.75 ... 25 mm² Rigid 0.75 ... 35 mm² Stranded 0.75 ... 35 mm² |
| Installation Dimensions: | according to DIN 43880 1 |
| Wire Stripping Length: | 14 mm |
| Terminal Type: | Screw |
| Tripping Characteristic: | C |
| Rated Operational Voltage: | according to IEC 60898-1 415 V AC, according to IEC 60947-2 415 V AC |
| Operational Voltage: | Maximum (including tolerance) 457 V AC Minimum 12 V AC Minimum 12 V DC |
| Rated Insulation Voltage (Ui): | according to IEC/EN 60664-1 500 V |
| Rated Impulse Withstand Voltage (Uimp): | 6 kV |
| Input Voltage Type: | AC/DC |
| Rated Current (In): | 6 A |
| Rated Short-Circuit Capacity: | (415 V AC) 100 kA (440 V AC) 100 kA |
| Rated Frequency: | 50 / 60 Hz, DC |
| Power Loss: | Total 2.7 W Per pole 0.9 W |
| Overvoltage Category: | IV |
En breve
Referencia ABB2CDS383001R0064
Nombre del producto Interruptor Automático en Miniatura - S300P - 3P - 6 A - C - (415 V AC) 100 kA - ABB2CDS383001R0064
