SCHNEIDER

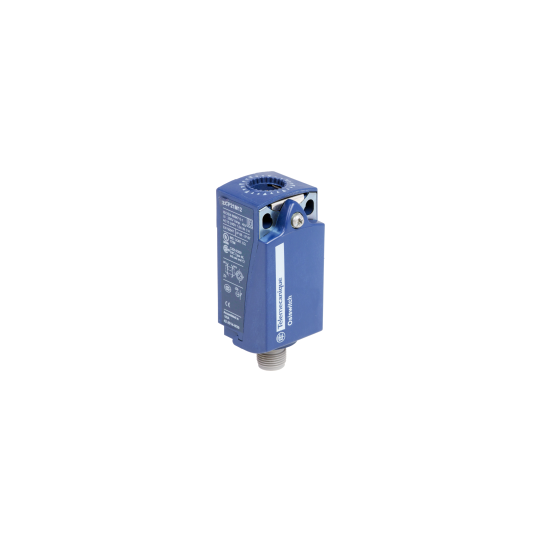

limit switch body ZCP - compact - 1NC+1NO - snap action - M12 4P - ZCP21M12
ZCP21M12
€19.18 Excl. Tax
€23.02 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Range of product: | Telemecanique Limit switches XC Standard |
|---|---|
| Series name: | Standard compact |
| Product or component type: | Limit switch body |
| Device short name: | ZCP |
| Design: | Compact |
| Body type: | Fixed |
| Associated head: | ZCE63ZCE06ZCE21ZCE24ZCE09ZCE29ZCE67ZCEH0ZCE08ZCE07ZCE10ZCEH2ZCE62ZCE02ZCE11ZCE05ZCE14ZCE64ZCE28ZCE01ZCE66ZCE13ZCE65ZCE27 |
| Body material: | Plastic |
| Number of poles: | 2 |
| Contacts type and composition: | 1 NC + 1 NO |
| Contact operation: | Snap action |
| Electrical connection: | Male connector M12, 4 pins |
|---|---|
| Contacts insulation form: | Zb |
| Contacts material: | Silver plated contacts |
| Positive opening: | With |
| Minimum actuation speed: | 0.01 m/s |
| Contact code designation: | B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix AR300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage: | 300 V conforming to UL 508500 V (pollution degree 3) conforming to IEC 60947-1300 V conforming to CSA C22.2 No 14 |
| Maximum resistance across terminals: | 25 mOhm conforming to IEC 60255-7 category 3 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 606646 kV conforming to IEC 60947-1 |
| Short-circuit protection: | 10 A cartridge fuse, type gG |
| [Ie] rated operational current: | 3 A at 240 V, AC-15 conforming to IEC 60947-5-1 appendix A0.27 A at 250 V, DC-13 conforming to IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current: | 3 A |
| Electrical durability: | 5000000 cycles, DC-13 120 V, 4 W, operating rate 5000000 cycles, DC-13 24 V, 10 W, operating rate 5000000 cycles, DC-13 48 V, 7 W, operating rate |
| Width: | 31 mm |
| Height: | 65 mm |
| Depth: | 30 mm |
| Net weight: | 0.07 kg |
| Terminals description ISO n°1: | (21-22)NC(13-14)NO |
| Device presentation: | Basic element |
| Compatibility code: | ZCP |
In short
Reference ZCP21M12
Product Name limit switch body ZCP - compact - 1NC+1NO - snap action - M12 4P - ZCP21M12
