SCHNEIDER

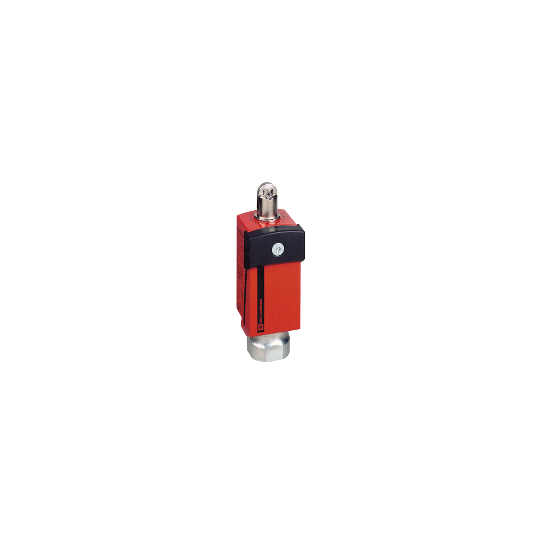

Safety limit switch, Telemecanique Safety switches XCS, metal, roller plunger, 2NC+1 NO, 1 entry tapped Pg 13.5 - XCSD3702G13
XCSD3702G13
€43.38 Excl. Tax
€52.06 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Range of product: | Telemecanique Safety switches XCS |
|---|---|
| Product or component type: | Safety limit switch |
| Component name: | XCSD |
| Design: | Compact |
| Material: | Metal |
| Head type: | Plunger head |
| Protection technology: | Plastic protective cover, secured by 5-lobe socket head safety screw |
| Type of operator: | Steel roller plunger |
| Contacts type and composition: | 1 NC + 1 NC + 1 NO |
| Contact operation: | Slow-break, break before make |
| Cable entry: | 1 entry tapped for Pg 13.5 |
| Electrical connection: | Terminal |
|---|---|
| Clamping connection capacity: | 1 x 0.34...2 x 0.75 mm² |
| Switch actuation: | By 30° cam |
| Number of poles: | 3 |
| Positive opening: | With NC contact |
| Mechanical durability: | 10000000 cycles |
| Minimum force for tripping: | 12 N |
| Positive opening minimum force: | 36 N |
| Maximum actuation speed: | 0.5 m/s |
| Contact code designation: | B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to EN/IEC 60947-5-1 appendix AR300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to EN/IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current: | 6 A |
| [Ui] rated insulation voltage: | 300 V conforming to UL 508400 V (pollution degree 3) conforming to EN/IEC 60947-1300 V conforming to CSA C22.2 No 14 |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to EN/IEC 60947-14 kV conforming to IEC 60664 |
| Maximum resistance across terminals: | 25 MOhm conforming to IEC 60255-7 category 3 |
| Short-circuit protection: | 6 A cartridge fuse type gG (gl) |
| Repeat accuracy: | 0.1 mm on tripping points, 1 million operating cycles for head with end plunger |
| Body material: | Zamak |
| Head material: | Zamak |
| Enclosure material: | Plastic |
| Depth: | 35 mm |
| Height: | 100 mm |
| Width: | 34 mm |
| Net weight: | 0.255 kg |
In short
Reference XCSD3702G13
Product Name Safety limit switch, Telemecanique Safety switches XCS, metal, roller plunger, 2NC+1 NO, 1 entry tapped Pg 13.5 - XCSD3702G13
