SCHNEIDER

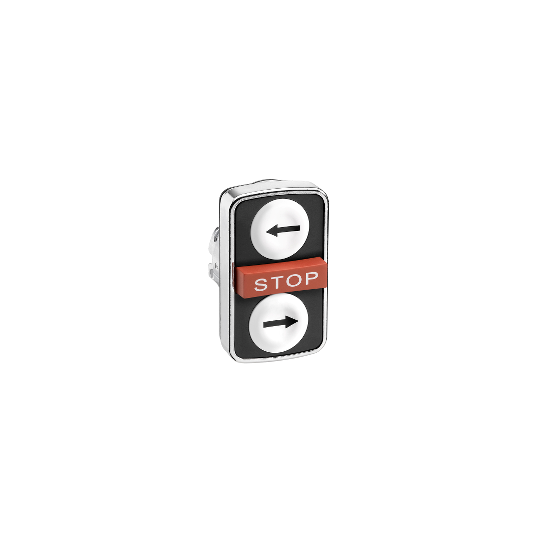

white flush/red projecting/white flush triple-headed pushbutton Ø22 with marking - ZB4BA71113
ZB4BA71113
This product is no longer available. Contact us for a suitable replacement solution tailored to your needs.
Technical informations
| Range of product: | Harmony XB4 |
|---|---|
| Product or component type: | Head for triple-headed push-button |
| Device short name: | ZB4 |
| Bezel material: | Chromium plated metal |
| Mounting diameter: | 22 mm |
| Sale per indivisible quantity: | 1 |
| Head type: | Standard |
| Shape of signaling unit head: | Rectangular |
| Type of operator: | spring return |
| Operator profile: | 2 flush - 1 central projecting STOP push-buttons |
| Operators description: | White ''right arrow'' - white ''left arrow'' - red ''STOP'' |
| Product weight: | 0.056 kg |
|---|---|
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| Colour of marking: | White marking when green, red or black capsBlack marking when white caps |
| Operator profile: | Red projecting, STOP (white)White flush, left arrow (black)White flush, right arrow (black) |
| Mechanical durability: | 1000000 cycles |
| Electrical composition code: | C1 for C2 for C11 for |
| Main group: | Triple head push-button |
| Group of product: | Flush/proj/flush marked |
| Cap/operator or lens colour: | White/red/white |
| Marking: | Right arrow/STOP/left arrow |
| Colour of marking: | Black/white/black |
| Device presentation: | Basic element |
| Compatibility code: | ZB4 |
In short
Reference ZB4BA71113
Product Name white flush/red projecting/white flush triple-headed pushbutton Ø22 with marking - ZB4BA71113
