LEGRAND

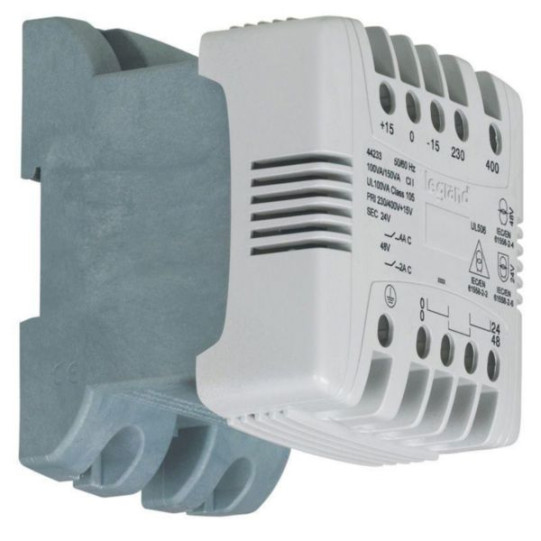

Control and circuit separation transformer screw connection primary 230V to 400V, secondary 115V~ to 230V~ - 160VA - LEG044264
LEG044264
€69.78 Excl. Tax
€83.74 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Technical Data | |
|---|---|
| Built as a safety transformer | No |
| Built as an isolation transformer | Yes |
| Built as an autotransformer | No |
| Primary voltage 1 | 215-215 V |
| Primary voltage 2 | 230-230 V |
| Primary voltage 3 | 245-245 V |
| Primary voltage 4 | 385-385 V |
| Primary voltage 5 | 400-400 V |
| Primary voltage 6 | 415-415 V |
| Secondary voltage 1 | 115-115 V |
| Secondary voltage 2 | 230-230 V |
| Rated apparent power | 160 VA |
| Power according to UL | 140 VA |
| Peak permissible power (cos φ = 0.5) | 250 VA |
| Insulation material class (IEC 85) | B |
| Short-circuit protection | No |
| Relative short-circuit voltage (uk) | 6.94 % |
| Width | 94 mm |
| Height | 112 mm |
| Depth | 113 mm |
| Protection class (IP) | IP2X |
| Protection level by power | IPxxB up to 400 VA, IPxxA above |
| Protective cover included | Yes, up to 1000 VA |
| Toroidal core | No |
| Suitable for plate mounting | No |
| Suitable for DIN rail mounting | Yes |
| Shock resistance (IK) | IK04 |
| Voltage type | AC |
| Terminal marking | Yes |
| Connection type | Screw terminal |
| Supplied with coupling bars | Yes, 2 bars |
| Standards | IEC EN 61558-2-2 / 2-4 / 2-6, UL5085, CSA C22.2 No.66 |
| Compliance with | EN 61131-2, EN 60204-1, EN 61439-1 |
| Certifications | UL (USA & Canada) |
| EAN/Barcode | 3245060442644 |
In short
Reference LEG044264
Product Name Control and circuit separation transformer screw connection primary 230V to 400V, secondary 115V~ to 230V~ - 160VA - LEG044264
