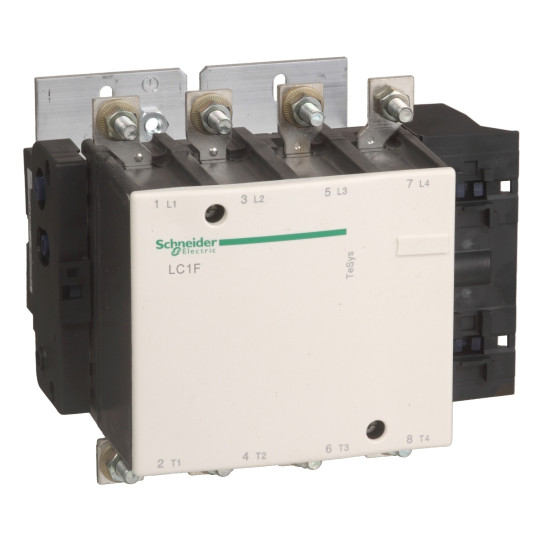

TeSys F contactor - 4P (4 NO) - AC-1 - <= 440 V 275 A - coil 230 V AC - LC1F1854P7

LC1F1854P7

This product is no longer available. Contact us for a suitable replacement solution tailored to your needs.

In short
Features
Details
Infos
Return
We recommend

Technical informations

Range of product:	TeSys F
Range:	TeSys
Product name:	TeSys F
Product or component type:	Contactor
Device short name:	LC1F
Contactor application:	Resistive load
Utilisation category:	AC-1
Poles description:	4P
Pole contact composition:	4 NO
[Ue] rated operational voltage:
[Ie] rated operational current:	275 A (at
Control circuit type:	AC at 40...400 Hz
[Uc] control circuit voltage:	230 V AC 40...400 Hz

[Uimp] rated impulse withstand voltage:	8 kV
Overvoltage category:	III
[Ith] conventional free air thermal current:	275 A (at 40 °C)
Rated breaking capacity:	1480 A conforming to IEC 60947-4-1
[Icw] rated short-time withstand current:	1500 A 40 °C - 10 s920 A 40 °C - 30 s740 A 40 °C - 1 min500 A 40 °C - 3 min400 A 40 °C - 10 min
Associated fuse rating:	200 A aM at 315 A gG at
Average impedance:	0.33 mOhm - Ith 275 A 50 Hz
[Ui] rated insulation voltage:	1000 V conforming to IEC 60947-4-11500 V conforming to VDE 0110 group C
Power dissipation per pole:	12 W AC-325 W AC-1
Mounting support:	Plate
Standards:	EN 60947-4-1IEC 60947-4-1JIS C8201-4-1EN 60947-1IEC 60947-1
Product certifications:	DNVLROS (Lloyds register of shipping)ABSULCBCCCRINABVRMRoSUKCA
Connections - terminals:	Control circuit: screw clamp terminals 1 cable(s) 1...4 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1...4 mm²flexible without cable endControl circuit: screw clamp terminals 1 cable(s) 1...4 mm²flexible with cable endControl circuit: screw clamp terminals 2 cable(s) 1...2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1...4 mm²solid without cable endControl circuit: screw clamp terminals 2 cable(s) 1...4 mm²solid without cable endPower circuit: bar 2 cable(s) - busbar cross section: 25 x 3 mmPower circuit: lugs-ring terminals 1 cable(s) 150 mm²Power circuit: connector 1 cable(s) 150 mm²Power circuit: bolted connection
Tightening torque:	Control circuit: 1.2 N.mPower circuit: 18 N.m
Control circuit voltage limits:	Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C)Drop-out: 0.35...0.55 Uc 40...400 Hz (at 55 °C)
Inrush power in VA:	1070 VA 40...400 Hz cos phi 0.9 (at 20 °C)
Hold-in power consumption in VA:	9.9 VA 40...400 Hz cos phi 0.9 (at 20 °C)
Heat dissipation:	8...9.8 W
Operating time:	35 ms closing (at Uc) 130 ms opening (at Uc)
Mechanical durability:	10 Mcycles
Maximum operating rate:	2400 cyc/h 55 °C
Compatibility code:	LC1F

IP degree of protection:	IP2x front face with shrouds conforming to IEC 60529IP2x front face with shrouds conforming to VDE 0106
Protective treatment:	TH
Ambient air temperature for operation:	-5...55 °C
Ambient air temperature for storage:	-60...80 °C
Permissible ambient air temperature around the device:	-40...70 °C
Operating altitude:	3000 m without derating
Height:	174 mm
Width:	208.5 mm
Depth:	181 mm
Product weight:	5.45 kg
Sustainable offer status:	Green Premium productREACh Regulation

Code EAN:	3389118093683
Rappels:	Ce produit Schneider LC1F1854P7 est de type Contacteur de la gamme TeSys F.
Délai d'approvisionnement:	contact
Substitution_texte:	This product is no longer available. Contact us for a suitable replacement solution tailored to your needs.

In short

Reference LC1F1854P7

Product Name TeSys F contactor - 4P (4 NO) - AC-1 - <= 440 V 275 A - coil 230 V AC - LC1F1854P7

Range TeSys
