SCHNEIDER

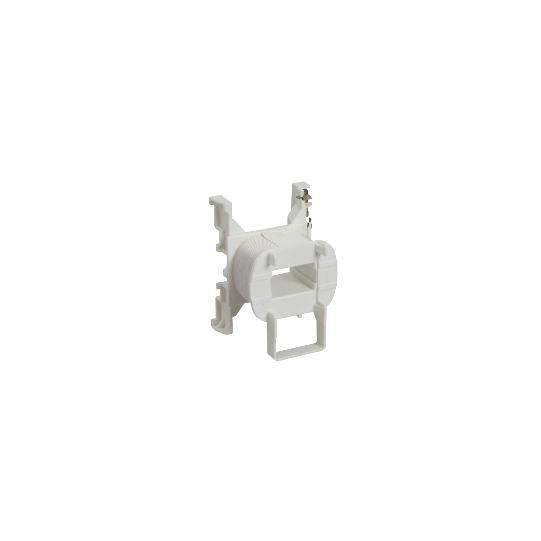

TeSys D - contactor coil - LXD1 - 24 V AC 50/60 Hz for 9… 38 A contactor - LXD1B7
LXD1B7
€19.27 Excl. Tax
€23.12 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock more than 25 units – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Range of product: | TeSys DTeSys D control relay |
|---|---|
| Range: | TeSys |
| Product or component type: | Contactor coil |
| Device short name: | LXD1 |
| Control circuit type: | AC at 50/60 Hz |
| [Uc] control circuit voltage: | 24 V AC 50/60 Hz |
| Average resistance: | 5.37 Ohm at 20 °C |
| Inductance of closed circuit: | 0.22 H |
| Product compatibility: | LC1D09...D38CADLC1DT20...DT40 |
| Mechanical durability: | 15 Mcycles |
| Maximum operating rate: | 3600 cyc/h 60 °C |
| Coil technology: | Without built-in suppressor module |
|---|---|
| Control circuit voltage limits: | Drop-out: 0.3...0.6 Uc at 50/60 Hz (at Operational: 0.8...1.1 Uc at 50 Hz (at Operational: 0.85...1.1 Uc at 60 Hz (at |
| Inrush power in VA: | 70 VA 60 Hz cos phi 0.75 (at 20 °C)70 VA 50 Hz cos phi 0.75 (at 20 °C) |
| Hold-in power consumption in VA: | 7.5 VA 60 Hz cos phi 0.3 (at 20 °C)7 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation: | 2...3 W at 50/60 Hz |
In short
Reference LXD1B7
Product Name TeSys D - contactor coil - LXD1 - 24 V AC 50/60 Hz for 9… 38 A contactor - LXD1B7
Range TeSys
