SCHNEIDER

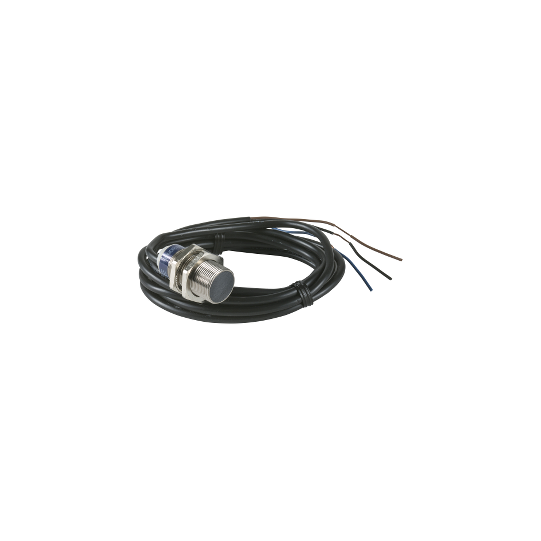

Télémécanique inductive sensor XS6 M18 - L62mm - brass - Sn8mm - 24..240VAC/DC - cable 2m - XS618B1MAL2
XS618B1MAL2
€37.50 Excl. Tax
€45.00 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock more than 25 units – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Range of product: | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series name: | General purpose |
| Sensor type: | Inductive proximity sensor |
| Sensor name: | XS6 |
| Sensor design: | Cylindrical M18 |
| Size: | 62 mm |
| Body type: | Fixed |
| Detector flush mounting acceptance: | Flush mountable |
| Material: | Metal |
| Type of output signal: | Discrete |
| Wiring technique: | 2-wire |
| [Sn] nominal sensing distance: | 8 mm |
| Discrete output function: | 1 NO |
| Output circuit type: | AC/DC |
| Electrical connection: | Cable |
| Cable length: | 2 m |
| [Us] rated supply voltage: | 24...240 V AC/DC 50/60 Hz |
| Switching capacity in mA: | 5...200 mA DC5...300 mA AC |
| IP degree of protection: | IP68 double insulation conforming to IEC 60529IP69K conforming to DIN 40050 |
| Thread type: | M18 x 1 |
|---|---|
| Detection face: | Frontal |
| Front material: | PPS |
| Enclosure material: | Nickel plated brass |
| Sensing range: | > 4...8 mm |
| Operating zone: | 0...6.4 mm |
| Differential travel: | 1...15% of Sr |
| Cable composition: | 2 x 0.34 mm² |
| Wire insulation material: | PvR |
| Status LED: | Output state: 1 LED (yellow) |
| Supply voltage limits: | 20...264 V AC/DC |
| Maximum residual current: | 0.8 mA open state |
| Switching frequency: | |
| Maximum voltage drop: | |
| Maximum delay first up: | 25 ms |
| Maximum delay response: | 0.5 ms |
| Maximum delay recovery: | 0.5 ms |
| Marking: | CE |
| Threaded length: | 52 mm |
| Length: | 62 mm |
| Product weight: | 0.12 kg |
In short
Reference XS618B1MAL2
Product Name Télémécanique inductive sensor XS6 M18 - L62mm - brass - Sn8mm - 24..240VAC/DC - cable 2m - XS618B1MAL2
