SCHNEIDER

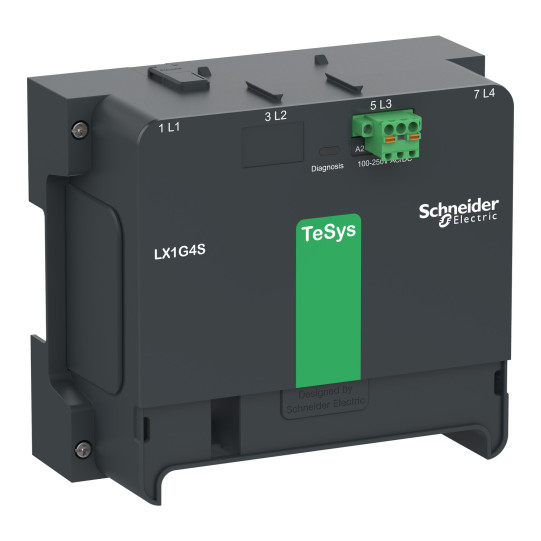

Standard Control Module 100-250V AC/DC for 4 Poles TeSys G400/500 - LX1G4SKUEN
LX1G4SKUEN
€198.60 Excl. Tax
€238.32 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Range: | TeSys |
|---|---|
| Product or Equipment Type: | Contactor Coil |
| Device Name: | LX1G |
| Poles Description: | 4P |
| Range Compatibility: | TeSys G LX1G contactor coil |
| Product Compatibility: | LC1G400...500 |
| [Uc] Control Circuit Voltage: | 100...250 V AC/DC 50/60 Hz |
| Operating Time: | 20?35 ms opening, 40...55 ms closing |
| Mechanical Durability: | 5 Mcycles |
| Maximum Operating Rate: | 600 cycles/min at 60 °C |
| Coil Technology: | Built-in bidirectional peak limiting |
| Control Circuit Voltage Range: | Operational |
| Drop-out Voltage: | 0...0.45 Uc (at 60 °C) |
| Connection Mode: | |
| Control Circuit: | push-in connection 1 cable(s) 0.2?2.5 mm² solid or stranded without ferrule AWG 26...AWG 12 Control Circuit |
| Inrush Power Consumption in VA: | 880 VA at 240 V AC, 60 Hz |
| Inrush Power Consumption in W: | 690.0 W DC |
| Hold-in Power Consumption in VA: | 11.0 VA at 240 V AC, 60 Hz |
| Hold-in Power Consumption in W: | 6.2 W for DC network |
| Control Circuit: | push-in connection 1 cable(s) 0.2?2.5 mm² solid or stranded without ferrule AWG 26...AWG 12 |
| Control Circuit: | push-in connection 1 cable(s) 0.25?2.5 mm² flexible with ferrule AWG 24?AWG 14 |
| Control Circuit: | push-in connection 2 cable(s) 0.5?1.0 mm² solid or semi-solid with ferrule AWG 20 to AWG 18 |
| IP protection degree: | IP20 in accordance with IEC 60529 |
|---|---|
| Operating altitude: | 3000 m without derating, 5000 m with derating factor |
| Electromagnetic compatibility: | EMC immunity conforming to IEC 60947-4-1, Emission tests criterion A conforming to IEC 60947-4-1 |
| Radiated radio-frequency immunity: | Test level |
| Voltage dips and interruptions immunity test: | Conforming to SEMI F47 |
| Standards: | EN/IEC 60947-4-1, UL 60947-4-1A, CSA C22.2 No 60947-4-1 |
| Pollution degree: | 3 in accordance with IEC 60947-1 |
| Ambient operating temperature: | -25?60 °C |
| Ambient storage temperature: | -60?80 °C |
| Ambient temperature around the device: | -40?70 °C at Uc |
| Height: | 167 mm |
| Width: | 185 mm |
| Depth: | 93 mm |
| Lot quantity: | 1 |
In short
Reference LX1G4SKUEN
Product Name Standard Control Module 100-250V AC/DC for 4 Poles TeSys G400/500 - LX1G4SKUEN
