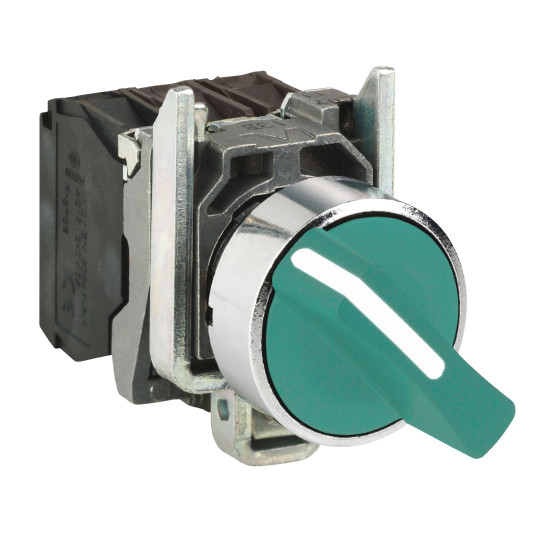

selector switch 3 position - STAY PUT - 3 NO SCREWS - XB4BD331
XB4BD331
This product is no longer available. Contact us for a suitable replacement solution tailored to your needs.
Technical informations
| Range of product: | Harmony XB4 |
|---|---|
| Product or component type: | Selector switch |
| Device short name: | XB4 |
| Bezel material: | Chromium plated metal |
| Fixing collar material: | Zamak |
| Mounting diameter: | 22Â mm |
| Sale per indivisible quantity: | 1 |
| Head type: | Standard |
| Shape of signaling unit head: | Round |
| Type of operator: | stay put |
| Operator profile: | White standard handle |
| Operator position information: | 3 positions +/- 45° |
| Contacts type and composition: | 3 NO |
| Contact operation: | Slow-break |
| Connections - terminals: | Screw clamp terminals, Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1 |
| Height: | 47Â mm |
|---|---|
| Width: | 30Â mm |
| Depth: | 68Â mm |
| Terminals description ISO n°1: | (13-14)NO(23-24)NO |
| Product weight: | 0.105Â kg |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| Contacts usage: | Standard contacts |
| Positive opening: | Without |
| Torque value: | 0.14Â N.m NO changing electrical state |
| Mechanical durability: | 1000000Â cycles |
| Tightening torque: | 0.8...1.2Â N.m conforming to EN 60947-1 |
| Shape of screw head: | Cross compatible with Philips no 1 screwdriverCross compatible with pozidriv No 1 screwdriverSlotted compatible with flat Ø 4 mm screwdriverSlotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts material: | Silver alloy (Ag/Ni) |
| Short-circuit protection: | 10Â A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| [Ith] conventional free air thermal current: | 10Â A conforming to EN/IEC 60947-5-1 |
| [Ui] rated insulation voltage: | 600Â V (pollution degree 3) conforming to EN 60947-1 |
| [Uimp] rated impulse withstand voltage: | 6Â kV conforming to EN 60947-1 |
| [Ie] rated operational current: | 3Â A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-16Â A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-10.1Â A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-10.27Â A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-10.55Â A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-11.2Â A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
| Electrical durability: | 1000000Â cycles, AC-15, 2Â A at 230 V, operating rate 1000000Â cycles, AC-15, 3Â A at 120 V, operating rate 1000000Â cycles, AC-15, 4Â A at 24 V, operating rate 1000000Â cycles, DC-13, 0.2Â A at 110 V, operating rate 1000000Â cycles, DC-13, 0.5Â A at 24 V, operating rate |
| Electrical reliability: | ? ? |
| Device presentation: | Complete product |
| Customizable: | No |
| Customizable: | 0 |
| Compatibility code: | XB4 |
| Cap/operator or lens colour: | White |
