SCHNEIDER

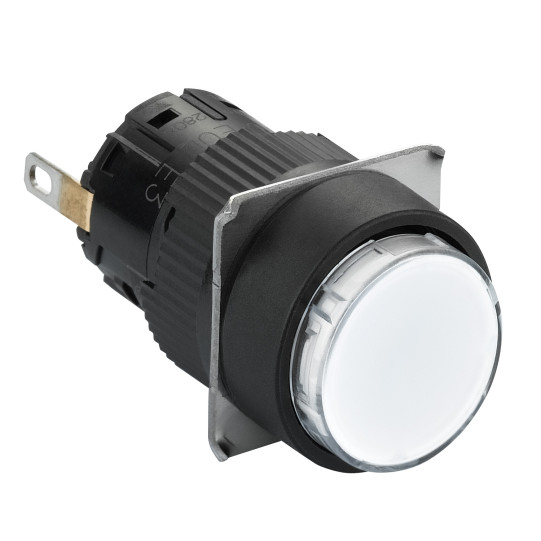

round pilot light Ø16 - IP65 - white - integral LED 24VDCpolarised - connector - XB6EAV1BP
XB6EAV1BP
This product is no longer available. Contact us for a suitable replacement solution tailored to your needs.
Technical informations
| Range of product: | Harmony XB6E |
|---|---|
| Product or component type: | Monolithic pilot light |
| Device short name: | XB6E |
| Bezel material: | Plastic |
| Mounting diameter: | 16 mm |
| Sale per indivisible quantity: | 5 |
| Shape of signaling unit head: | Round |
| Cap/operator or lens colour: | White |
| Light source: | Integral LED |
| Light block supply: | Direct |
| [Us] rated supply voltage: | 24 V DC polarised |
| Product weight: | 0.006 kg |
|---|---|
| Overvoltage category: | II conforming to IEC 60536 |
| Operating position: | Any position |
| Marking: | CE |
| Connections - terminals: | Insulated faston, connection size: 2.8 x 0.5 mmSolder terminal, clamping capacity: Fast connector socket |
| Tightening torque: | 0.6...1 N.m |
| [Ui] rated insulation voltage: | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 2.5 kV conforming to IEC 60947-1 |
| Signalling type: | Steady |
| Current consumption: | 10 mA |
| Service life: | 30000 h |
| Compatibility code: | XB6 |
In short
Reference XB6EAV1BP
Product Name round pilot light Ø16 - IP65 - white - integral LED 24VDCpolarised - connector - XB6EAV1BP
