SCHNEIDER

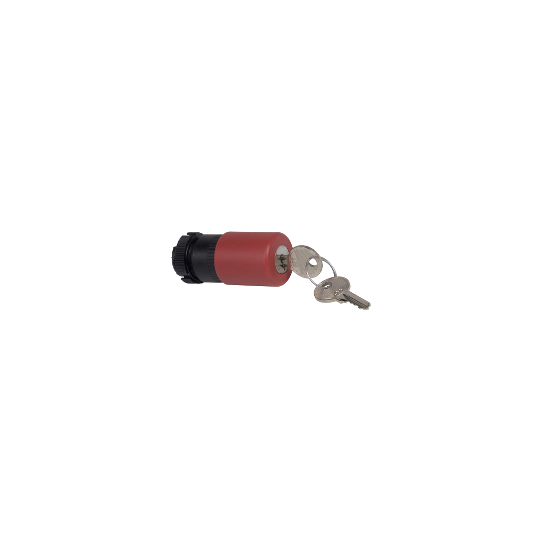

red Ø30 Emergency stop, switching off head trigger and latching key release - ZA2BS934

ZA2BS934

Obsolete product, here is the proposed substitution for the reference ZA2BS934 : ZB5AS934

In short
Features
Details
Infos
Return
We recommend

Technical informations

Range of product:	Harmony XAC
Product or component type:	Head for emergency switching off push-button
Sale per indivisible quantity:	1

Marking:	Unmarked
Cap/operator or lens colour:	Red
Product compatibility:	XACA..
Mounting location:	Front of enclosure
Product weight:	0.06 kg
Overvoltage category:	Class II conforming to IEC 61140

Ambient air temperature for storage:	-40...70 °C
Ambient air temperature for operation:	-25...70 °C
IK degree of protection:	IK08 conforming to EN 50102
Standards:	UL 508EN/IEC 60947-5-5CSA C22.2 No 14EN/IEC 60947-5-1EN/IEC 60204-32
Vibration resistance:	15 gn (f= 10...500 Hz) conforming to IEC 60068-2-6
Sustainable offer status:	Green Premium productREACh Regulation

Code EAN:	3389110591774
Rappels:	Ce produit Schneider ZA2BS934 est de type Tête de coupure d'urgence de la gamme Harmony.
Substitution_texte:	Obsolete product, here is the proposed substitution for the reference ZA2BS934 : ZB5AS934

In short

Reference ZA2BS934

Product Name red Ø30 Emergency stop, switching off head trigger and latching key release - ZA2BS934
