SCHNEIDER

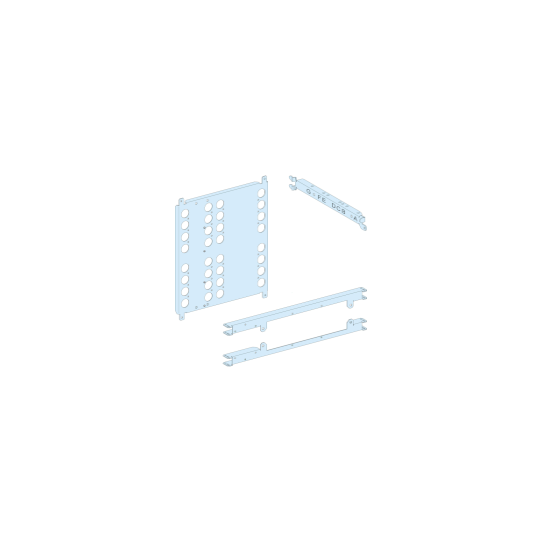

PrismaSeT P Active - Platine NSX-INS-INV400-630-3P4P-horizontal-TéléCde-L650 - LVS03458
LVS03458
€189.58 Excl. Tax
€227.50 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Range: | PrismaSeT |
|---|---|
| Range of product: | PrismaSeT P |
| Product or component type: | Mounting plate |
| Accessory / separate part category: | Installation accessory |
| Range compatibility: | PrismaSeT P cubicle |
| Enclosure/cubicle description: | Cubicle - width 650 mm depth 400 mm |
| Installed device: | ComPact: fixed INS320...630 source changeover - control: direct front rotary handle - horizontal installationComPact: fixed INV320...630 source changeover - control: direct front rotary handle - horizontal installationSource changeover: fixed NSX400...630 source changeover without earth leakage protection - control: direct front rotary handle - horizontal installation |
| Poles description: | 2 x 3P: fixed NSX400...630 source changeover horizontal installation2 x 4P: fixed NSX400...630 source changeover horizontal installation2 x 3P: fixed INS320...630 source changeover horizontal installation2 x 4P: fixed INS320...630 source changeover horizontal installation2 x 3P: fixed INV320...630 source changeover horizontal installation2 x 4P: fixed INV320...630 source changeover horizontal installation |
| Number of vertical modules [50 mm]: | 10 module(s): NSX400...630 source changeover without earth leakage protection , direct in 650 mm Widecubicle10 module(s): INS320...630 source changeover, direct in 650 mm Widecubicle10 module(s): INV320...630 source changeover, direct in 650 mm Widecubicle |
| Standards: | IEC 61439-2 |
| Product certifications: | ASTA |
| Material: | Sheet steel |
|---|---|
| Protective treatment: | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish: | MattTextured |
| Colour: | White (RAL 9003) |
| Width: | 386 mm |
| Height: | 450 mm |
| Net weight: | 4.56 kg |
| Enclosure/cubicle width: | 650 mm 400 mm PrismaSeT P cubicle ComPact INS320...630 source changeover fixed direct front rotary handle horizontal 3P 2 direct 10 12.5 mm650 mm 400 mm PrismaSeT P cubicle ComPact INS320...630 source changeover fixed direct front rotary handle horizontal 4P 2 direct 10 12.5 mm650 mm 400 mm PrismaSeT P cubicle ComPact INV320...630 source changeover fixed direct front rotary handle horizontal 3P 2 direct 10 12.5 mm650 mm 400 mm PrismaSeT P cubicle ComPact INV320...630 source changeover fixed direct front rotary handle horizontal 4P 2 direct 10 12.5 mm650 mm 400 mm PrismaSeT P cubicle source changeover NSX400...630 source changeover without fixed direct front rotary handle horizontal 3P 2 direct 10 12.5 mm650 mm 400 mm PrismaSeT P cubicle source changeover NSX400...630 source changeover without fixed direct front rotary handle horizontal 4P 2 direct 10 12.5 mm |
In short
Reference LVS03458
Product Name PrismaSeT P Active - Platine NSX-INS-INV400-630-3P4P-horizontal-TéléCde-L650 - LVS03458
Range PrismaSeT
