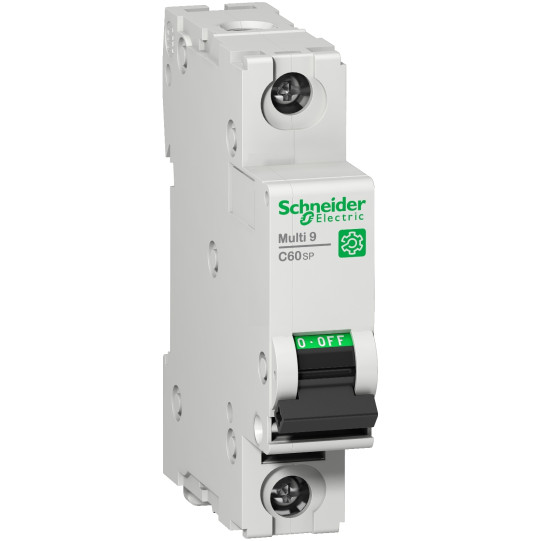

Multi9 - C60SP - MCB - 1P - 5 A - C Curve - 277 V - 10 kA - UL 1077 - M9F22105
M9F22105
€35.44 Excl. Tax
€42.53 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
Supply in process - Average delivery 4/6 weeks
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Range of product: | Multi 9 |
|---|---|
| Range: | Multi 9 |
| Product name: | Multi 9 C60 |
| Product or component type: | Miniature circuit-breaker |
| Device short name: | C60SP |
| Device application: | Distribution |
| Poles description: | 1P |
| Number of protected poles: | 1 |
| [In] rated current: | 5 A at 25 °C conforming to EN/IEC 60947-2 |
| Network type: | ACDC |
| Trip unit technology: | Thermal-magnetic |
| Curve code: | C |
| Breaking capacity: | 10 kA AIR at 277 V AC conforming to UL 107714 kA AIR at 240 V AC conforming to UL 107714 kA AIR at 120 V AC conforming to UL 107710 kA AIR at 65 V DC conforming to UL 107710 kA AIR at 277 V AC conforming to CSA C22.2 No 23514 kA AIR at 240 V AC conforming to CSA C22.2 No 23514 kA AIR at 120 V AC conforming to CSA C22.2 No 23510 kA AIR at 65 V DC conforming to CSA C22.2 No 2353 kA Icu at 415 V AC conforming to EN/IEC 60947-210 kA Icu at 240 V AC conforming to EN/IEC 60947-220 kA Icu at 60 V DC conforming to EN/IEC 60947-23 kA Icu at 415 V AC conforming to GB 14048.210 kA Icu at 240 V AC conforming to GB 14048.220 kA Icu at 60 V DC conforming to GB 14048.2 |
| Suitability for isolation: | Yes conforming to EN/IEC 60947-2 |
| Standards: | EN/IEC 60947-2GB 14048.2UL 1077CSA C22.2 No 235 |
| Product certifications: | IECCCCURCSA |
| [Ue] rated operational voltage: | 240 V AC 50/60 Hz415 V AC 50/60 Hz60 V DC |
|---|---|
| Magnetic tripping limit: | 8.5 x In +/- 20 % AC12 x In +/- 20 % DC |
| [Ics] rated service breaking capacity: | 2.25 kA 75 % conforming to EN/IEC 60947-2 - 415 V AC7.5 kA 75 % conforming to EN/IEC 60947-2 - 240 V AC20 kA 100 % conforming to EN/IEC 60947-2 - 60 V DC2.25 kA 75 % conforming to GB 14048.2 - 415 V AC7.5 kA 75 % conforming to GB 14048.2 - 240 V AC20 kA 100 % conforming to GB 14048.2 - 60 V DC |
| [Ui] rated insulation voltage: | 500 V AC conforming to EN/IEC 60947-2 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN/IEC 60947-2 |
| Contact position indicator: | Yes |
| Control type: | Toggle |
| Local signalling: | ON/OFF indication |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 2 |
| Height: | 81 mm |
| Width: | 18 mm |
| Depth: | 72 mm |
| Colour: | Grey |
| Mechanical durability: | 20000 cycles |
| Electrical durability: | 10000 cycles |
| Provision for padlocking: | Padlockable |
| Connections - terminals: | Tunnel type terminal (top or bottom)1...25 mm² (AWG 18...AWG 8) - rigidTunnel type terminal (top or bottom)1...16 mm² (AWG 18...AWG 8) - flexible with ferruleTunnel type terminal (top or bottom)1...16 mm² (AWG 18...AWG 8) - flexible |
| Wire stripping length: | 14 mm for top or bottom connection |
| Tightening torque: | 2.5 N.m top or bottom |
| Earth-leakage protection: | Without |
In short
Reference M9F22105
Product Name Multi9 - C60SP - MCB - 1P - 5 A - C Curve - 277 V - 10 kA - UL 1077 - M9F22105
Range Multi 9
Device function Distribution
