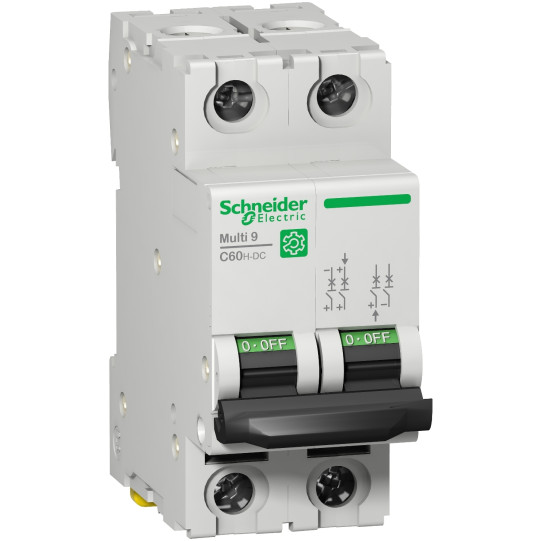

Multi9 - C60H-DC - MCB - 2P - 6 A - C Curve - 500 V DC - 10 kA - M9U21206
M9U21206
€95.31 Excl. Tax
€114.37 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Range of product: | Multi 9 |
|---|---|
| Range: | Multi 9 |
| Product name: | Multi 9 C60H-DC |
| Product or component type: | Miniature circuit-breaker |
| Device short name: | C60H-DC |
| Device application: | Distribution |
| Poles description: | 2P |
| Number of protected poles: | 2 |
| [In] rated current: | 6 A at 25 °C conforming to EN/IEC 60947-2 |
| Network type: | DC |
| Trip unit technology: | Thermal-magnetic |
| Curve code: | C |
| Breaking capacity code: | H |
| Breaking capacity: | 20 kA Icu at 220 V DC conforming to EN/IEC 60947-210 kA Icu at 440 V DC conforming to EN/IEC 60947-26 kA Icu at 500 V DC conforming to EN/IEC 60947-25 kA AIR at 12...500 V DC conforming to UL 107720 kA Icu at 220 V DC conforming to GB 14048.210 kA Icu at 440 V DC conforming to GB 14048.26 kA Icu at 500 V DC conforming to GB 14048.2 |
| Utilisation category: | Category A conforming to EN/IEC 60947-2 |
| Suitability for isolation: | Yes conforming to EN/IEC 60947-2 |
| Standards: | EN/IEC 60947-2GB 14048.2UL 1077 |
| Product certifications: | IECCCCUR |
| [Ue] rated operational voltage: | 220 V DC440 V DC500 V DC |
|---|---|
| Magnetic tripping limit: | 7...10 x In DC |
| [Ics] rated service breaking capacity: | 7.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V DC4.5 kA 75 % conforming to EN/IEC 60947-2 - 500 V DC15 kA 75 % conforming to EN/IEC 60947-2 - 220 V DC7.5 kA 75 % conforming to GB 14048.2 - 440 V DC4.5 kA 75 % conforming to GB 14048.2 - 500 V DC15 kA 75 % conforming to GB 14048.2 - 220 V DC |
| [Ui] rated insulation voltage: | 500 V DC conforming to EN/IEC 60947-2 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN/IEC 60947-2 |
| Contact position indicator: | Yes |
| Control type: | Toggle |
| Local signalling: | ON/OFF indication |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 4 |
| Height: | 81 mm |
| Width: | 36 mm |
| Depth: | 73 mm |
| Product weight: | 0.128 kg |
| Colour: | Grey |
| Mechanical durability: | 20000 cycles |
| Electrical durability: | 3000 cycles 250 V DC L/R = 2 ms6000 cycles 250 V DC |
| Provision for padlocking: | Padlockable |
| Connections - terminals: | Tunnel type terminal (top or bottom)1...25 mm² (AWG 18...AWG 4) - rigid strandedTunnel type terminal (top or bottom)1...16 mm² (AWG 18...AWG 6) - flexibleTunnel type terminal (top or bottom)1...16 mm² (AWG 18...AWG 6) - flexible with ferruleTunnel type terminal (top or bottom) - 2 cable(s) 1...10 mm² (AWG 18...AWG 8) - rigid strandedTunnel type terminal (top or bottom) - 2 cable(s) 1...10 mm² (AWG 18...AWG 8) - flexibleTunnel type terminal (top or bottom) - 2 cable(s) 1...10 mm² (AWG 18...AWG 8) - flexible with ferruleTunnel type terminal (top or bottom) - 3 cable(s) 1 mm² (AWG 18) - flexible stranded |
| Wire stripping length: | 14 mm for top or bottom connection |
| Tightening torque: | 2.5 N.m top or bottom |
| Earth-leakage protection: | Without |
