SCHNEIDER

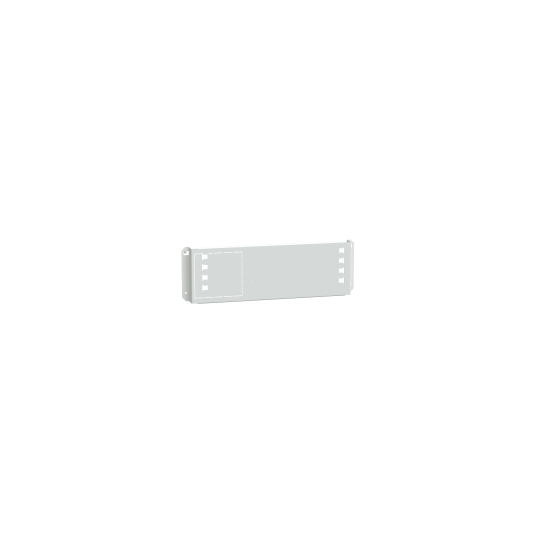

MOUNTING PLATE NSXm/VIGI/SDx HZ ROT.HANDLE W600 - LVS03021
LVS03021
€82.38 Excl. Tax
€98.86 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Range: | PrismaSeT |
|---|---|
| Range of product: | PrismaSeT G |
| Product or component type: | Mounting plate |
| Accessory / separate part category: | Installation accessory |
| Range compatibility: | PrismaSeT G enclosure |
| Enclosure/cubicle description: | Floor-standing enclosure - width 600 mmWall-mounted enclosure - width 600 mmFloor-standing enclosure - width 850 mmFloor-standing enclosure + duct - width 600 + 300 mmWall-mounted enclosure + duct - width 600 + 300 mm |
| Mounting plate description: | Dedicated |
| Installed device: | ComPact: fixed NSXm without earth leakage protection - control: direct rotary handle - horizontal installation |
| Poles description: | 1 x 3P or 4P: fixed NSXm horizontal installation |
| Number of vertical modules [50 mm]: | 3 module(s): NSXm without earth leakage protection , direct in 600 mm Widefloor-standing enclosure3 module(s): NSXm without earth leakage protection , direct in 600 mm Widewall-mounted enclosure3 module(s): NSXm without earth leakage protection , direct in 600 + 300 mm Widefloor-standing enclosure + duct3 module(s): NSXm without earth leakage protection , direct in 600 + 300 mm Widewall-mounted enclosure + duct3 module(s): NSXm without earth leakage protection , direct in 850 mm Widefloor-standing enclosure |
| Standards: | IEC 61439-2 |
| Product certifications: | ASTA |
| Material: | Sheet steel |
|---|---|
| Protective treatment: | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish: | MattTextured |
| Colour: | White (RAL 9003) |
| Width: | 470 mm |
| Height: | 150 mm |
| Enclosure/cubicle width: | 600 mm PrismaSeT G floor-standing enclosure ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 25 mm600 mm PrismaSeT G wall-mounted enclosure ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 25 mm850 mm PrismaSeT G floor-standing enclosure ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 25 mm600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 25 mm600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 25 mm |
In short
Reference LVS03021
Product Name MOUNTING PLATE NSXm/VIGI/SDx HZ ROT.HANDLE W600 - LVS03021
Range PrismaSeT
