SCHNEIDER

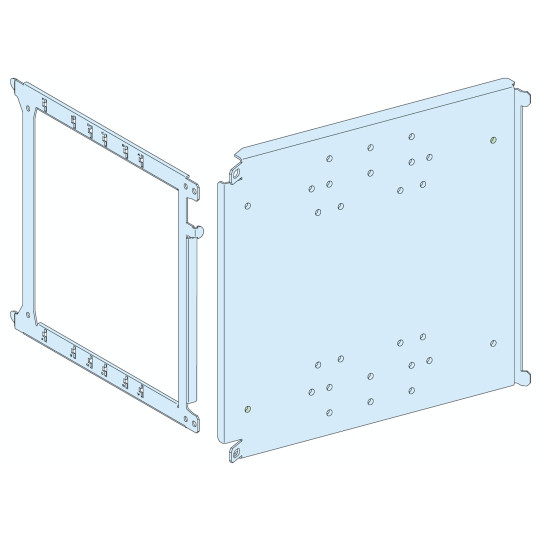

MOUNTING PLATE FOR NS FIXED -3P/4P 1600A VERTICAL IN WIDTH 400 - 03487

03487

This product is no longer available. Contact us for a suitable replacement solution tailored to your needs.

In short
Features
Details
Infos
Return
We recommend

Technical informations

Range:	Prisma
Range of product:	Prisma P
Product or component type:	Mounting plate
Accessory / separate part category:	Installation accessory
Range compatibility:	Prisma P cubicle
Enclosure/cubicle description:	Cubicle - width 400 mm depth 400 mm
Installed device:	ComPact: fixed NSX400 without earth leakage protection - control: toggle - vertical installationComPact: fixed NSX630 without earth leakage protection - control: toggle - vertical installationComPact: fixed NSX400 with earth leakage protection - control: toggle - vertical installationComPact: fixed NSX630 with earth leakage protection - control: toggle - vertical installationComPact: fixed NSX400 without earth leakage protection - control: direct front rotary handle - vertical installationComPact: fixed NSX630 without earth leakage protection - control: direct front rotary handle - vertical installationComPact: plug-in NSX400 without earth leakage protection - control: toggle - vertical installationComPact: fixed NSX400 without earth leakage protection - control: motor mechanism - vertical installationComPact: plug-in NSX400 without earth leakage protection - control: direct front rotary handle - vertical installationComPact: plug-in NSX400 without earth leakage protection - control: motor mechanism - vertical installationComPact: plug-in NSX630 without earth leakage protection - control: toggle - vertical installationComPact: fixed NSX630 without earth leakage protection - control: motor mechanism - vertical installationComPact: plug-in NSX630 without earth leakage protection - control: direct front rotary handle - vertical installationComPact: plug-in NSX630 without earth leakage protection - control: motor mechanism - vertical installationComPact: plug-in NSX400 with earth leakage protection - control: toggle - vertical installationComPact: plug-in NSX630 with earth leakage protection - control: toggle - vertical installationComPact: fixed NS1250 - control: toggle - vertical installationComPact: fixed NS1250 - control: direct front rotary handle - vertical installationComPact: fixed NS1250 - control: motor mechanism - vertical installationComPact: fixed NS1600 - control: toggle - vertical installationComPact: fixed NS1600 - control: direct front rotary handle - vertical installationComPact: fixed NS1600 - control: motor mechanism - vertical installationComPact: fixed NS630b...1000 - control: toggle - vertical installationComPact: fixed NS630b...1000 - control: direct front rotary handle - vertical installationComPact: fixed NS630b...1000 - control: motor mechanism - vertical installation
Poles description:	1 x 3P: fixed NSX400 vertical installation1 x 4P: fixed NSX400 vertical installation1 x 3P: fixed NSX630 vertical installation1 x 4P: fixed NSX630 vertical installation1 x 3P: plug-in NSX400 vertical installation1 x 4P: plug-in NSX400 vertical installation1 x 3P: plug-in NSX630 vertical installation1 x 4P: plug-in NSX630 vertical installation1 x 3P: fixed NS1250 vertical installation1 x 4P: fixed NS1250 vertical installation1 x 3P: fixed NS1600 vertical installation1 x 4P: fixed NS1600 vertical installation1 x 3P: fixed NS630b...1000 vertical installation1 x 4P: fixed NS630b...1000 vertical installation
Number of vertical modules [50 mm]:	36 module(s): NS1250, direct in 400 mm Widecubicle36 module(s): NS1600, direct in 400 mm Widecubicle36 module(s): NS630b...1000, direct in 400 mm Widecubicle12 module(s): NSX400 without earth leakage protection , front connection in 400 mm Widecubicle12 module(s): NSX630 without earth leakage protection , front connection in 400 mm Widecubicle14 module(s): NSX400 with earth leakage protection , front connection in 400 mm Widecubicle14 module(s): NSX630 with earth leakage protection , front connection in 400 mm Widecubicle
Standards:	IEC 61439-2
Product certifications:	ASEFA

Protective treatment:	Electrophoresis treatment and hot-polymerised polyester epoxy powder
Surface finish:	MattSmooth
Colour:	White (RAL 9001)
Width:	400 mm
Height:	300 mm
Product weight:	2.7 kg
Enclosure/cubicle width:	400 mm 400 mm Prisma P cubicle ComPact NS1250 fixed toggle vertical 3P 1 direct 36 762.5 mm400 mm 400 mm Prisma P cubicle ComPact NS1250 fixed toggle vertical 4P 1 direct 36 762.5 mm400 mm 400 mm Prisma P cubicle ComPact NS1250 fixed direct front rotary handle vertical 3P 1 direct 36 762.5 mm400 mm 400 mm Prisma P cubicle ComPact NS1250 fixed direct front rotary handle vertical 4P 1 direct 36 762.5 mm400 mm 400 mm Prisma P cubicle ComPact NS1250 fixed motor mechanism vertical 3P 1 direct 36 762.5 mm400 mm 400 mm Prisma P cubicle ComPact NS1250 fixed motor mechanism vertical 4P 1 direct 36 762.5 mm400 mm 400 mm Prisma P cubicle ComPact NS1600 fixed toggle vertical 3P 1 direct 36 762.5 mm400 mm 400 mm Prisma P cubicle ComPact NS1600 fixed toggle vertical 4P 1 direct 36 762.5 mm400 mm 400 mm Prisma P cubicle ComPact NS1600 fixed direct front rotary handle vertical 3P 1 direct 36 762.5 mm400 mm 400 mm Prisma P cubicle ComPact NS1600 fixed direct front rotary handle vertical 4P 1 direct 36 762.5 mm400 mm 400 mm Prisma P cubicle ComPact NS1600 fixed motor mechanism vertical 3P 1 direct 36 762.5 mm400 mm 400 mm Prisma P cubicle ComPact NS1600 fixed motor mechanism vertical 4P 1 direct 36 762.5 mm400 mm 400 mm Prisma P cubicle ComPact NS630b...1000 fixed toggle vertical 3P 1 direct 36 762.5 mm400 mm 400 mm Prisma P cubicle ComPact NS630b...1000 fixed toggle vertical 4P 1 direct 36 762.5 mm400 mm 400 mm Prisma P cubicle ComPact NS630b...1000 fixed direct front rotary handle vertical 3P 1 direct 36 762.5 mm400 mm 400 mm Prisma P cubicle ComPact NS630b...1000 fixed direct front rotary handle vertical 4P 1 direct 36 762.5 mm400 mm 400 mm Prisma P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 3P 1 direct 36 762.5 mm400 mm 400 mm Prisma P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 4P 1 direct 36 762.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX400 without fixed toggle vertical 3P 1 front connection 12 112.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX400 without fixed toggle vertical 4P 1 front connection 12 112.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX400 without fixed direct front rotary handle vertical 3P 1 front connection 12 137.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX400 without fixed direct front rotary handle vertical 4P 1 front connection 12 137.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX400 without fixed motor mechanism vertical 3P 1 front connection 12 137.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX400 without fixed motor mechanism vertical 4P 1 front connection 12 137.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX400 without plug-in toggle vertical 3P 1 front connection 12 112.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX400 without plug-in toggle vertical 4P 1 front connection 12 112.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX400 without plug-in direct front rotary handle vertical 3P 1 front connection 12 137.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX400 without plug-in direct front rotary handle vertical 4P 1 front connection 12 137.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX400 without plug-in motor mechanism vertical 3P 1 front connection 12 137.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX400 without plug-in motor mechanism vertical 4P 1 front connection 12 137.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX630 without fixed toggle vertical 3P 1 front connection 12 112.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX630 without fixed toggle vertical 4P 1 front connection 12 112.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX630 without fixed direct front rotary handle vertical 3P 1 front connection 12 137.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX630 without fixed direct front rotary handle vertical 4P 1 front connection 12 137.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX630 without fixed motor mechanism vertical 3P 1 front connection 12 137.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX630 without fixed motor mechanism vertical 4P 1 front connection 12 137.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX630 without plug-in toggle vertical 3P 1 front connection 12 112.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX630 without plug-in toggle vertical 4P 1 front connection 12 112.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX630 without plug-in direct front rotary handle vertical 3P 1 front connection 12 137.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX630 without plug-in direct front rotary handle vertical 4P 1 front connection 12 137.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX630 without plug-in motor mechanism vertical 3P 1 front connection 12 137.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX630 without plug-in motor mechanism vertical 4P 1 front connection 12 137.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX400 with fixed toggle vertical 3P 1 front connection 14 112.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX400 with fixed toggle vertical 4P 1 front connection 14 112.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX400 with plug-in toggle vertical 3P 1 front connection 14 112.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX400 with plug-in toggle vertical 4P 1 front connection 14 112.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX630 with fixed toggle vertical 3P 1 front connection 14 112.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX630 with fixed toggle vertical 4P 1 front connection 14 112.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX630 with plug-in toggle vertical 3P 1 front connection 14 112.5 mm400 mm 400 mm Prisma P cubicle ComPact NSX630 with plug-in toggle vertical 4P 1 front connection 14 112.5 mm

Sustainable offer status:	Green Premium product
REACh Regulation:	Free of Substances of Very High Concern above the threshold
EU RoHS Directive:	Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free:	Yes
RoHS exemption information:	Yes
China RoHS Regulation:	Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure:	ENVPEP1303002EN
Circularity Profile:	ENVEOLI1303002EN
Halogen content performance:	Halogen free plastic parts product

Code EAN:	3303430034872
Rappels:	Ce produit de la marque Schneider 03487 est de type Platine de montage de la gamme Prisma.
Délai d'approvisionnement:	4/6 weeks
Substitution_texte:	This product is no longer available. Contact us for a suitable replacement solution tailored to your needs.

In short

Reference 03487

Product Name MOUNTING PLATE FOR NS FIXED -3P/4P 1600A VERTICAL IN WIDTH 400 - 03487

Range Prisma
