SCHNEIDER

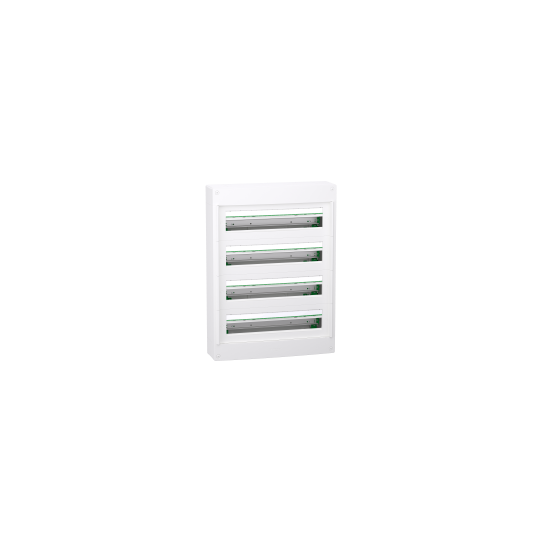

Modular enclosure, PrismaSeT XS, surface, 4 x 24 modules, 1 earth terminal block, without door - LVSXT424
LVSXT424
€214.18 Excl. Tax
€257.02 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock more than 100 units – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Range: | PrismaSeT |
|---|---|
| Product name: | XS |
| Product or component type: | Enclosure |
| Enclosure type: | Distribution enclosure |
| Enclosure mounting: | Surface |
| Width: | 550 mm total: |
|---|---|
| Height: | 750 mm total: |
| Depth: | 148 mm total: |
| Internal depth: | 135 mm |
| Number of 18 mm modules per row: | 24 |
| Number of horizontal rows: | 4 |
| Total number of 18 mm modules: | 96 |
| 9 mm pitches: | 192 |
| Electrical insulation class: | Class II |
| Provided equipment: | 4 identification label4 label protector1 terminal block1 blanking plate strip1 door to be ordered separately4 DIN rail6 cable fixing hardware1 back plate |
| Type of front plate: | Modular |
| Type of rail: | Symmetrical DIN |
| Mounting plate description: | Without mounting plate |
| Removable parts: | DIN rail |
| Power dissipation in W: | 87 W |
| [In] rated current: | 125 A |
| [Ui] rated insulation voltage: | 400 V |
| Cable entry: | Cable or tubeCut-out platesTrunkingRemovable plates |
| Number of terminal blocks: | 1 earth with 48 outgoers |
| Distribution block outgoers: | 6 x 25 mm² + 42 x 4 mm² for earth |
| Connections - terminals: | Screw connection (earth) , 6 x 6...25 mm²Push-in (earth) , 32 x 1.5...4 mm² (flexible) Push-in (earth) , 32 x 6 mm² (rigid or stranded) |
| Enclosure material: | Back part: metalEnclosure: technoplasticFront plate: technoplastic |
| Net weight: | 8.420 kg |
| Colour: | Enclosure: white (RAL 9003)Front plate: white (RAL 9003) |
| Market segment: | ResidentialSmall buildings |
In short
Reference LVSXT424
Product Name Modular enclosure, PrismaSeT XS, surface, 4 x 24 modules, 1 earth terminal block, without door - LVSXT424
Range PrismaSeT
