SCHNEIDER

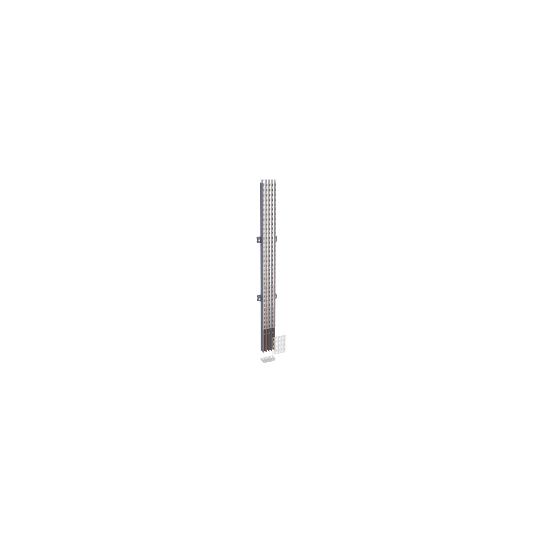

Linergy BW - Jeu de barres isolées - 250 A 4P - L=1000 mm (Powerclip) - LVS04122
LVS04122
€163.80 Excl. Tax
€196.56 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Range: | Linergy |
|---|---|
| Range of product: | Linergy |
| Product or component type: | Busbar |
| Product name: | Linergy BW |
| Range compatibility: | PrismaSeT G enclosurePrismaSeT P enclosure |
| IP degree of protection: | IPxx B |
| Busbar description: | Insulated bar |
| Quantity per set: | Set of 1 |
| Poles description: | 4P |
|---|---|
| Installation direction: | Vertical, operating position: rear |
| Enclosure/cubicle description: | Cubicle - width 650 mmFloor-standing enclosure - width 600 mmWall-mounted enclosure - width 600 mm |
| [Ui] rated insulation voltage: | 750 V AC |
| [Uimp] rated impulse withstand voltage: | 8 kV |
| [Ie] rated operational current: | 250 A |
| [Icw] rated short-time withstand current: | 13 kA (1 s) |
| [Ipk] rated peak withstand current: | 30 kA |
| I²t on activation: | 169000 kA².s |
| Permissible current: | 250 A |
| Length: | 1000 mm |
| Height: | 85 mm |
| Depth: | 45 mm |
| Net weight: | 4.68 kg |
| Type of busbar connection: | M6 threaded hole |
| Connection pitch: | Connection each 25 mm |
In short
Reference LVS04122
Product Name Linergy BW - Jeu de barres isolées - 250 A 4P - L=1000 mm (Powerclip) - LVS04122
Range Linergy
