SCHNEIDER

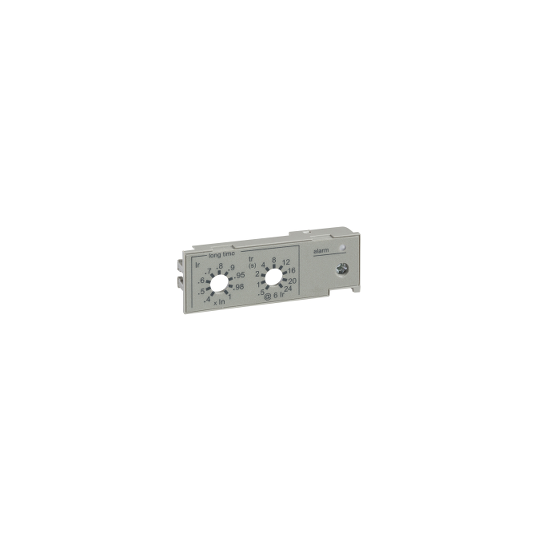

IEC long time rating plug, MicroLogic trip units, low setting Ir (0.4 to 0.8 x In) - 33543

33543

This product is no longer available. Contact us for a suitable replacement solution tailored to your needs.

In short
Features
Details
Infos
Return
We recommend

Technical informations

Range of product:	ComPact NS630b...1600ComPact NS1600b...3200
Range:	MasterpactComPact
Product or component type:	Long time rating plug
Device application:	Control
Range compatibility:	MasterPact NTMasterpact NWComPact NS630b...1600ComPact NS1600b...3200
Trip unit name:	Micrologic

Long time pick-up adjustment type Ir:	Adjustable
Long time pick-up adjustment range:	0.4...0.8 x In

REACh Regulation:	Free of Substances of Very High Concern above the threshold
REACh free of SVHC:	Yes
EU RoHS Directive:	Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free:	Yes
RoHS exemption information:	Yes
China RoHS Regulation:	Product out of China RoHS scope. Substance declaration for your information

Code EAN:	3303430335436
Rappels:	Ce produit de la marque Schneider 33543 est de type Calibreur de la gamme Compact NS.
Substitution_texte:	This product is no longer available. Contact us for a suitable replacement solution tailored to your needs.

In short

Reference 33543

Product Name IEC long time rating plug, MicroLogic trip units, low setting Ir (0.4 to 0.8 x In) - 33543

Range Compact
Masterpact

Device function Contrôle
