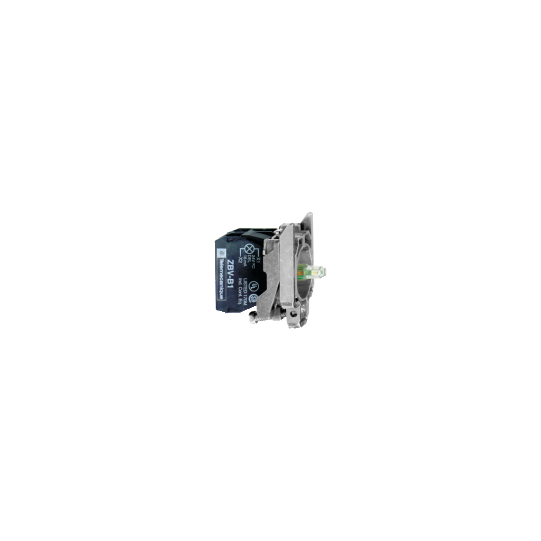

green light block with body/fixing collar with integral LED 110...120V 1NO+1NC - ZB4BW0G35
ZB4BW0G35
This product is no longer available. Contact us for a suitable replacement solution tailored to your needs.
Technical informations
| Range of product: | Harmony XB4 |
|---|---|
| Product or component type: | Complete body/contact assembly and light block |
| Device short name: | ZB4 |
| Fixing collar material: | Zamak |
| Sale per indivisible quantity: | 1 |
| Head type: | Standard |
| Contacts type and composition: | 1 NO + 1 NC |
| Contact operation: | Slow-break |
| Connections - terminals: | Screw clamp terminals, Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| Light source: | Protected LED |
| Bulb base: | Integral LED |
| Light block supply: | Direct |
| Light source colour: | Green |
| [Us] rated supply voltage: | 110...120 V AC at 50/60 Hz |
| [Us] rated supply voltage: | 110...120 V |
| CAD overall width: | 30Â mm |
|---|---|
| CAD overall height: | 47Â mm |
| Terminals description ISO n°1: | (11-12)NC |
| Net weight: | 0.074Â kg |
| Contacts usage: | Standard |
| Positive opening: | With conforming to EN/IEC 60947-5-1 appendix K |
| Operating travel: | 1.5Â mm (NC changing electrical state)2.6Â mm (NO changing electrical state)4.3Â mm (total travel) |
| Operating force: | 2Â N NC changing electrical state2.3Â N NO changing electrical state |
| Operating torque: | 0.05Â N.m NO changing electrical state |
| Mechanical durability: | 5000000Â cycles |
| Tightening torque: | 0.8...1.2Â N.m conforming to EN 60947-1 |
| Shape of screw head: | Cross compatible with Philips no 1 screwdriverCross compatible with pozidriv No 1 screwdriverSlotted compatible with flat Ø 4 mm screwdriverSlotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts material: | Silver alloy (Ag/Ni) |
| Short-circuit protection: | 10Â A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| [Ith] conventional free air thermal current: | 10Â A conforming to EN/IEC 60947-5-1 |
| [Ui] rated insulation voltage: | 600Â V (pollution degree 3) conforming to EN 60947-1 |
| [Uimp] rated impulse withstand voltage: | 6Â kV conforming to EN 60947-1 |
| [Ie] rated operational current: | 3Â A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-16Â A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-10.1Â A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-10.27Â A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-10.55Â A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-11.2Â A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
| Electrical durability: | 1000000Â cycles, AC-15, 2Â A at 230 V, operating rate 1000000Â cycles, AC-15, 3Â A at 120 V, operating rate 1000000Â cycles, AC-15, 4Â A at 24 V, operating rate 1000000Â cycles, DC-13, 0.2Â A at 110 V, operating rate 1000000Â cycles, DC-13, 0.5Â A at 24 V, operating rate |
| Electrical reliability: | ? ? |
| Signalling type: | Steady |
| Current consumption: | 14 mA |
| Service life: | 100000 h at rated voltage and 25 °C |
| Surge withstand: | 1Â kV conforming to IEC 61000-4-5 |
| Device presentation: | Basic sub-assemblies |
| Customizable: | No |
| Customizable: | 0 |
| Compatibility code: | ZB4 |
In short
Reference ZB4BW0G35
Product Name green light block with body/fixing collar with integral LED 110...120V 1NO+1NC - ZB4BW0G35
