SCHNEIDER

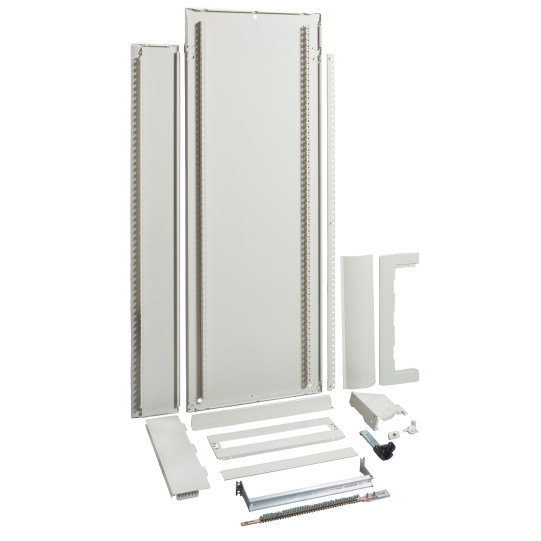

FLOOR-STANDING ENCLOSURE 8 ROWS + 6M FREE PRISMA PACK250 IP30 - 08073
08073
This product is no longer available. Contact us for a suitable replacement solution tailored to your needs.
Technical informations
| Range: | Prisma |
|---|---|
| Range of product: | Prisma G |
| Product name: | Prisma Pack 250 |
| Product or component type: | Enclosure |
| Enclosure type: | Modular enclosure delivered in kit form |
| Enclosure/cubicle description: | Floor-standing enclosure - width 600 mm |
| Enclosure mounting: | Flush with kitSurface |
| Provided equipment: | 2 x earthing kit1 x floor stand enclosure8 x front plate8 x modular rail |
| Additional information: | Can be combined side by side and one on top of another |
| Type of front cover: | ModularFree 6M zone to be ordered separately |
| Number of vertical modules [50 mm]: | 30 |
| Number of horizontal rows: | 8 |
| Number of 18 mm modules per row: | 24 |
| Standards: | IEC 61439-1IEC 61439-2IEC 62208 |
| [Ui] rated insulation voltage: | 1000 V on main rear busbars conforming to IEC 61439-2 |
|---|---|
| Network frequency: | 50/60 Hz |
| [In] rated current: | 250 A at 40 °C conforming to IEC 61439-2 |
| [Icw] rated short-time withstand current: | 25 kA 1 s conforming to IEC 61439-2 |
| [Ipk] rated peak withstand current: | 53 kA conforming to IEC 61439-2 |
| Electrical insulation class: | Class I |
| Protective treatment: | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish: | MattSmooth |
| Colour: | White (RAL 9001) |
| Width: | 600 mm |
| Height: | 1680 mm |
| Depth: | 205 mm |
| Product weight: | 31.75 kg |
| Quantity per set: | Set of 1 |
In short
Reference 08073
Product Name FLOOR-STANDING ENCLOSURE 8 ROWS + 6M FREE PRISMA PACK250 IP30 - 08073
Range Prisma
