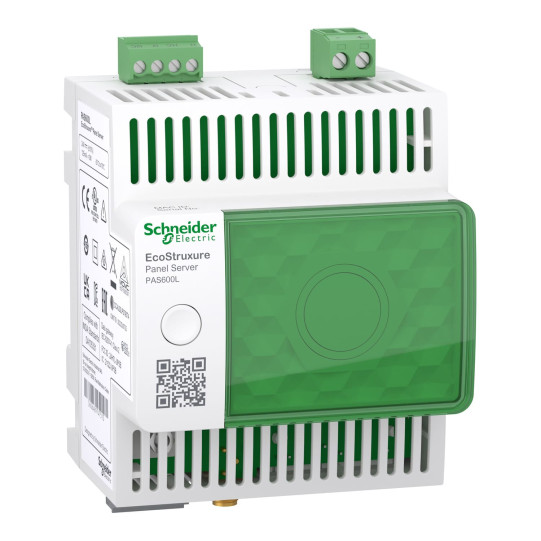

EcoStruxure Panel Server - universal wireless, concentrator modbus gateway 24 VDC - PAS600L
PAS600L
Reference temporarily unavailable. Discover the proposed substitution for reference PAS600L : PAS600 - EnerlinX - EcoStruxure Panel Server Universel - alim 110-277VACDC
Technical informations
| Range: | EcoStruxure |
|---|---|
| Product name: | Panel Server Universal |
| Product or component type: | Gateway |
| Device short name: | PAS600L |
| [Us] rated supply voltage: | 24 V DC |
| Communication gateway: | Ethernet TCP/IP to wireless devicesEthernet/serial |
| Maximum power consumption in W: | 3Â W 24 V |
|---|---|
| Communication network type: | Ethernet, 10/100BASE-TWi-Fi infrastructure2.4 GHzWi-Fi access point2.4 GHzWireless, IEEE 802.15.4Modbus RTU, Modbus RTU client even/odd or none parity, at 1.2...115.2 kbit/s |
| Communication port protocol: | Modbus TCPDHCPHTTPSNTP/SNTPIPv4IPv6TCP/IP |
| Communication port support: | 2 RJ45: ETHERNETScrew terminal block: RS485 |
| Number of server device(s): | 32 Modbus RTU product(s) 128 Modbus TCP/IP product(s) 40 wireless product(s) - mixed85 wireless product(s) - depending on configuration |
| Number of devices: | 64 Modbus TCP/IP |
| Memory capacity: | 512 MB NAND |
| Number of inputs: | 2 digital |
| Connections - terminals: | Discrete I/O: screw terminal block (top) 0.14...1.5 mm² cable(s) Power supply: screw terminal block (top) 1.5...2.5 mm² cable(s) Communication: screw terminal block (bottom) 0.14...1.5 mm² cable(s) |
| Tightening torque: | Discrete I/O: 0.25Â N.mPower supply: 0.6Â N.mCommunication: 0.25Â N.m |
| Wire stripping length: | Power supply: 7Â mmCommunication: 7Â mmDiscrete I/O: 7Â mm |
| Number of connectors: | 1 RP-SMA for Wi-Fi |
| Connector type: | RP-SMA, Wi-Fi for antenna bottom |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| Product certifications: | CEcULusCBRCMUKCAFCCICDNV MarineANSI RFIACS E10 |
| Standards: | IEC 61010IEC 61010-1IEC 61010-2-201UL 61010UL 61010-1UL 61010-2-201EN 61010-1EN 61010-2-201CAN/CSA C22.2 No. 61010-1-12CAN/CSA C22.2 No. 61010-2-201IEC 62974-1IEC 61326-1EN 61326-1ETSI EN 301 489-1ETSI EN 301 489-17EN 301-893EN 55032CISPR 11ETSI EN 300 328IEEE 802.15.4IEEE 802.11a/b/g/nIEEE 802.3 af/atFCC CFR 47 part 15 class AEN 62311IEC 62311ANSI C63.10IEC 60945EN 62974-1DNVGL-GC-0339 |
| Depth: | 70.2Â mm |
| Height: | 93Â mm |
| Width: | 72Â mm |
| Product weight: | 181Â g |
| Data recording: | Real time data monitoring |
| Data retention time: | 1Â month(s) |
| Function available: | Embedded web page for configuration and upgradeDiagnosis capabilitiesDiagnostic reportDiagnostics on communicationEnergy managementWith integrated web serverFirmware updateBackup/restore configurationConfigurable event |
| Product specific application: | Wireless Schneider Electric devices ecosystem |
| Topology: | Separated Ethernet networkSwitched Ethernet network |
| Web services: | HTTPS serverSFTP publication (CSV / JSON)HTTPS publication (CSV / JSON) |
| Communication service: | Device Profile for Web Services (DPWS)Modbus TCP clientModbus TCP serverSNTP clientDHCP clientDHCP serverRSTP |
| Commissioning interface: | EcoStruxure Power Commission desktopEcoStruxure Power Commission Mobile (through Wi-Fi Access point)EcoStruxure Power Commission web (for third party device integration)Web page |
| Realtime clock: | With RTC-battery setWith user calibration |
| Time synchronisation protocol: | NTPSNTP |
| Range compatibility: | EcoStruxure Facility ExpertEcoStruxure Building OperationEcoStruxure Power OperationEcoStruxure Power Monitoring ExpertEcoStruxure Asset AdvisorEcoStruxure Energy HubEcoStruxure Resource AdvisorThird party SCADA |
| Communication iinterface: | Wired and wireless |
In short
Reference PAS600L
Product Name EcoStruxure Panel Server - universal wireless, concentrator modbus gateway 24 VDC - PAS600L
Range EcoStruxure
