LEGRAND

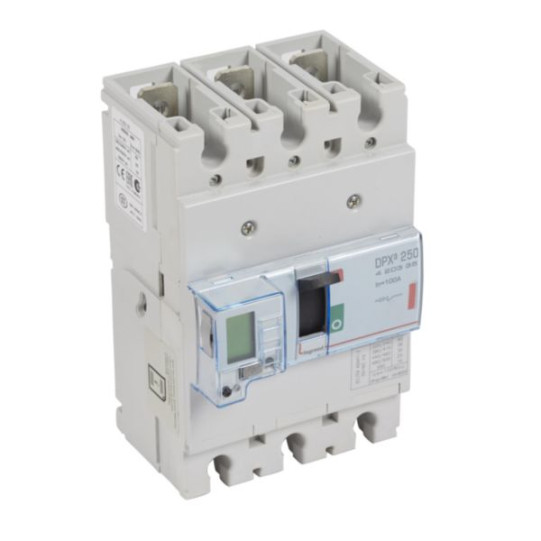

Electronic circuit breaker DPX³250 breaking capacity 36kA 400V~ - 3P - 100A - LEG420335
LEG420335
€780.75 Excl. Tax
€936.90 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Technical Data | |
|---|---|
| Rated continuous current (Iu) | 100A |
| Rated voltage (Ue) | 220-690V |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz | 36kA |
| Overload trip current setting | 40-100A |
| Short-time delayed short-circuit trip setting range | 60-1000A |
| Instantaneous short-circuit trip setting range | 60-1000A |
| Device construction type | Fixed mounting technique for embedded device |
| Integrated protection against accidental earth faults | No |
| Main circuit connection type | Screw connection |
| Suitable for top-hat rail mounting | Yes |
| Optional top-hat rail mounting | Yes |
| Number of normally open auxiliary contacts | 1 |
| Number of changeover auxiliary contacts | 1 |
| Trip signalling relay available | Yes |
| With integrated undervoltage release | Yes |
| Number of poles | 3 |
| Main circuit connection position | Front |
| Operating element finish | Handle / lever |
| Complete device with protection unit | Yes |
| Integrated motorized control | No |
| Optional motorized control | Yes |
| Protection class (IP) | IP30 |
| Compliant with battery regulations | Yes |
| IEC code (Pack1) | CR 1616 |
| Battery or accumulator (Pack1) | Battery (non-rechargeable) |
| Cell composition (Pack1) | Lithium |
| Number of Pack 1 | 2 |
| Number of cells per pack (Pack1) | 1 |
| Weight of a single cell (Pack1) | 1.1g |
| Pack1 location | Product includes a battery |
| Regulatory type (Pack1) | P: Portable (Standard Size) |
| EAN/Barcode | 3245064203357 |
In short
Reference LEG420335
Product Name Electronic circuit breaker DPX³250 breaking capacity 36kA 400V~ - 3P - 100A - LEG420335
