SCHNEIDER

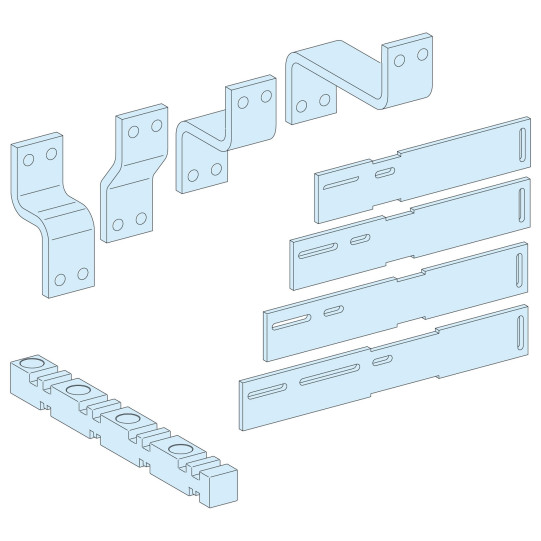

Connection for vertical fixed INS-INV, 3P 1600A, on Linergy LGY - 04481
04481
This product is no longer available. Contact us for a suitable replacement solution tailored to your needs.
Technical informations
| Range: | Prisma |
|---|---|
| Range of product: | Prisma P |
| Product or component type: | Connection |
| Range compatibility: | Prisma P enclosure |
| Accessory / separate part category: | Current distribution accessory |
| Standards: | IEC 61439-2IEC 61439-1 |
| Product certifications: | ASEFA |
| Cubicle-device connection: | Linergy busbar |
|---|---|
| Poles description: | 3P |
| Enclosure/cubicle description: | Cubicle - width 650 mm |
| Installed device: | ComPact: fixed INS630b...1600 - control: direct front rotary handle vertical installationComPact: fixed INV630b...1600 - control: direct front rotary handle vertical installation |
| [Ie] rated operational current: | 1600 A |
| [In] rated current: | 1600 A |
| Busbar cross section: | 80 x 10 mm |
| Product weight: | 14.32 kg |
| Quantity per set: | Set of 1 |
| Enclosure/cubicle width: | 650 mm 400 mm Prisma P cubicle ComPact INS630b...1600 fixed direct front rotary handle vertical 3P 1 front connection on adaptor 14650 mm 400 mm Prisma P cubicle ComPact INV630b...1600 fixed direct front rotary handle vertical 3P 1 front connection on adaptor 14 |
In short
Reference 04481
Product Name Connection for vertical fixed INS-INV, 3P 1600A, on Linergy LGY - 04481
Range Prisma
