ABB

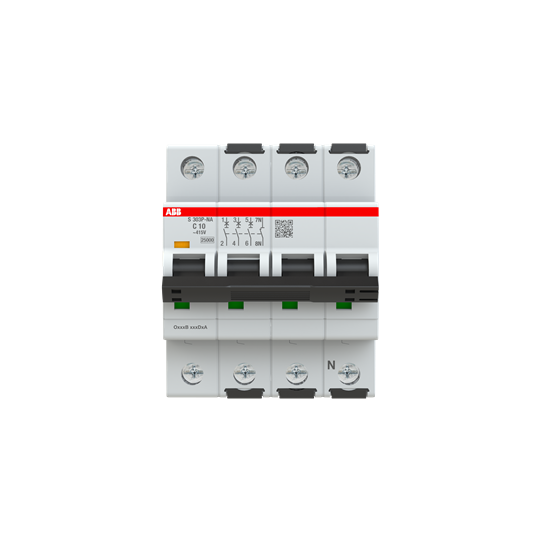

Circuit breaker S303P 25kA 3P+N (Neutral on the right) C 10A - ABB2CDS383103R0104
ABB2CDS383103R0104
€94.30 Excl. Tax
€113.16 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Width in Number of Modular Spacings: | 4.0 |
|---|---|
| Product Net Width: | 70 mm |
| Product Net Height: | 88 mm |
| Product Net Depth / Length: | 69 mm |
| Product Net Weight: | 0.496 kg |
| Built-In Depth (t2): | 69 mm |
| Dielectric test voltage: | 50/60 Hz-1 min |
|---|---|
| Ultimate short-circuit breaking capacity (I cu ): | (415 V AC) 25 kA,(440 V AC) 15 kA,(400 V) 25 kA |
| Rated short-circuit breaking capacity (I cs ): | (133 V AC) 15 kA, (230 V AC) 7.5 kA |
| Power supply connection: | Arbitrary |
| Contact position indication: | Red ON / Green OFF |
| Energy limiting class: | 3 |
| Electrical endurance: | 20,000 AC cycles |
| Mechanical endurance: | 20,000 cycles |
| Number of protected poles: | 3 |
| Number of poles: | 3P+N |
| Tightening torque: | 2.8 N·m |
| Screw terminal type: | Bidirectional cylinder-lift terminal with integrated safety |
| Actuator marking: | I/O |
| Actuator material: | Insulation group II, black, sealable |
| Recommended screwdriver: | Pozidriv 2 |
| Available accessories: | Yes |
| Connection capacity: | Busbar 10 / 10 mm², Flexible with ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm² |
| Installation size: | according to DIN 43880 1 |
| Wire stripping length: | 14 mm |
| Terminal type: | Screw terminals |
| Tripping characteristic: | C Rated operational voltage |
| Tripping characteristic: | C |
| Rated operational voltage: | acc. to IEC 60898-1 415 V AC - acc. to IEC 60898-1 415 V - acc. to IEC 60947-2 415 V AC |
| Operational voltage: | Maximum (incl. tolerance) 457 V AC - Maximum (incl. tolerance) 457 V DC - Minimum 12 V AC - Minimum 12 V DC |
| Rated insulation voltage (Ui): | acc. to IEC/EN 60664-1 500 V |
| Rated impulse withstand voltage (Uimp): | 6 kV |
| Input voltage type: | AC/DC |
| Rated current (In): | 10 A |
| Rated short-circuit capacity: | (AC) 25 kA - (400 V) 25 kA |
| Rated conditional short-circuit current (Inc): | (230 V) 10 kA - (400 V) 10 kA |
| Rated frequency (f): | 50 / 60 Hz |
| Power loss: | 6 W at rated operating conditions per pole |
| Overvoltage category: | IV |
In short
Reference ABB2CDS383103R0104
Product Name Circuit breaker S303P 25kA 3P+N (Neutral on the right) C 10A - ABB2CDS383103R0104
