LEGRAND

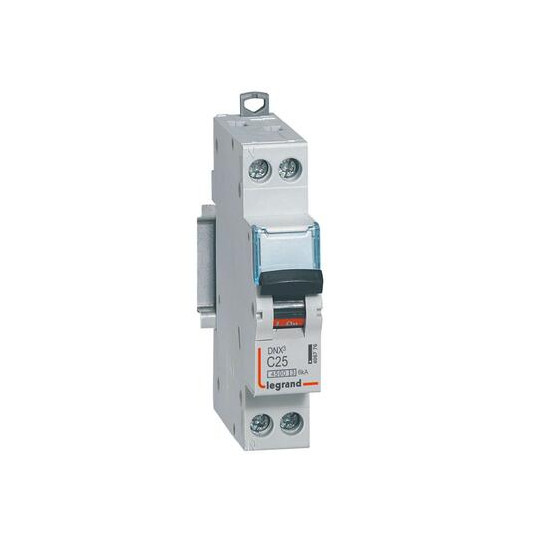

Circuit breaker DNX³ 4500 - screw/screw - U+N 230V~ 25A - 4.5kA - curve C - 1 module - 406776
LEG406776
€10.28 Excl. Tax
€12.34 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock more than 25 units – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Frequency | 50 Hz |
| Nominal breaking capacity according to IEC 60947-2 | 6 kA |
| Rigid cable connection section | 0.75-16 mm² |
| Suitable for embedded installation | Yes |
| Connectable conductor section (flexible) | 0.75-10 mm² |
| Ambient temperature in operation | -25-70 °C |
| Auxiliary products that can be associated | Yes |
| Number of poles (total) | 2 |
| Assigned short-circuit breaking capacity Icn according to EN 60898 at 230 V | 4.5 kA |
| Assigned short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 6 kA |
| Impulse withstand voltage (Uimp) | 4 kV |
| Nominal breaking capacity according to EN 60898 | 4.5 kA |
| Neutral pole simultaneously disconnected | Yes |
| Protection class (IP) | IP20 |
| Type of voltage | AC |
| Rating | 25 A |
| Mounting depth | 44 mm |
| Voltage | 230 V |
| Circuit type | C |
| Frequency | 50-60 Hz |
| Assigned insulation voltage (Ui) | 250 V |
| Energy limiting class (I²t) | 3 |
| Number of poles | 2 |
| Pollution degree | 2 |
| Number of 9mm increments | 1 |
| Number of protected poles | 1 |
| Range | DNX³ Circuit Breakers |
| Sales unit | 1 |
| Name | DNX³ Circuit Breaker single + neutral 230V~ |
| Standards | NF EN 60891-1, EN 60947-2 |
| Voltage | 230V~ - 50Hz |
| Usage | Residential installations |
| Breaking capacity | 4500A (EN 60898-1), 6kA (EN 60947-2) |
| Outgoing protection | Top entry and bottom exit via screw terminals |
| Rated current | 25A |
| Curve | C (magnetic tripping between 5In and 10In) |
| Number of modules | 1 |
| Compatibility | HX³ optimized universal single-pole (phase or neutral) or four-pole busbar |
| Floating tests | Allows for floating tests (voltage presence) |
| Auxiliaries and accessories | Receives DX³ auxiliaries and accessories |
| Terminal protection | IP20, wired device |
| Connection types |
|
In short
Reference LEG406776
Product Name Circuit breaker DNX³ 4500 - screw/screw - U+N 230V~ 25A - 4.5kA - curve C - 1 module - 406776
