SCHNEIDER

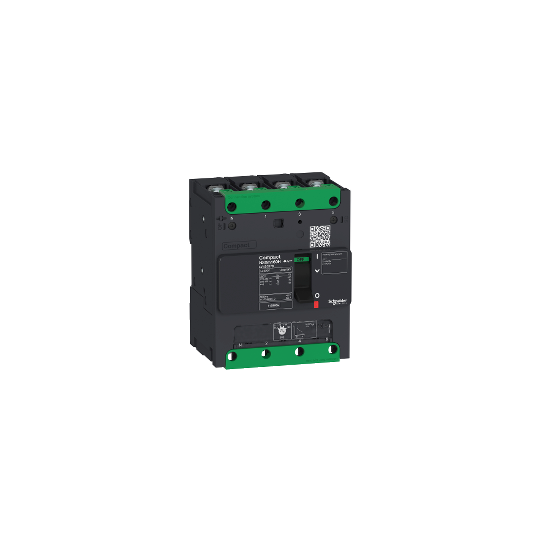

circuit breaker Compact NSXm 63A 4P 36kA at 380/415V(IEC) compression lug - LV426375
LV426375
This product is no longer available. Contact us for a suitable replacement solution tailored to your needs.
Technical informations
| Range: | ComPact |
|---|---|
| Product name: | ComPact NSXm |
| Range of product: | ComPact NSXm |
| Device short name: | NSXm 63F |
| Product or component type: | Circuit breaker |
| Device application: | DistributionProtection |
| Poles description: | 4P |
| Protected poles description: | 4D |
| Neutral position: | Left |
| [In] rated current: | 63 A at 40 °C |
| [Ue] rated operational voltage: | 690 V AC 50/60 Hz |
| Network type: | AC |
| Network frequency: | 50/60 Hz |
| Suitability for isolation: | Yes conforming to EN/IEC 60947-2 |
| Utilisation category: | Category A |
| Breaking capacity: | 85Â kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-236Â kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-235Â kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-215Â kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-210Â kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 |
| Breaking capacity code: | F 36Â kA 415 V AC |
| Trip unit name: | TM-D |
| Trip unit technology: | Thermal-magnetic |
| Trip unit protection functions: | LI |
| Control type: | Toggle |
| Mounting mode: | By screwsClip-on |
| [Ui] rated insulation voltage: | 800Â V AC 50/60 Hz |
|---|---|
| [Uimp] rated impulse withstand voltage: | 8Â kV |
| [Ics] rated service breaking capacity: | 10Â kA at 500 V AC 50/60 Hz conforming to IEC 60947-285Â kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-236Â kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-230Â kA at 440 V AC 50/60 Hz conforming to IEC 60947-210Â kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability: | 20000Â cycles |
| Electrical durability: | 10000Â cycles at 440 V In20000Â cycles at 440 V In/25000Â cycles at 690 V In10000Â cycles at 690 V In/2 |
| Mounting support: | PlateDIN rail |
| Connections - terminals: | compression lug/busbar |
| Connection pitch: | 35Â mm with spreaders27Â mm without spreaders |
| 9 mm pitches: | 12 module |
| Protection type: | L |
| Trip unit rating: | 63 A at 40 °C |
| Long time pick-up adjustment type Ir: | Adjustable |
| Long time pick-up adjustment range: | 0.7...1 x In |
| Long time delay adjustment type: | Fixed |
| Magnetic tripping current: | 800Â A |
| Earth-leakage protection: | Without |
| Number of slots: | 1 slot(s) for auxiliary switch OF1 slot(s) for alarm switch SD1 slot(s) for voltage release MN or MX |
| Width: | 108Â mm |
| Height: | 137Â mm |
| Depth: | 80Â mm |
| Net weight: | 1.42Â kg |
| Colour: | Grey (RAL 7016) |
