SCHNEIDER

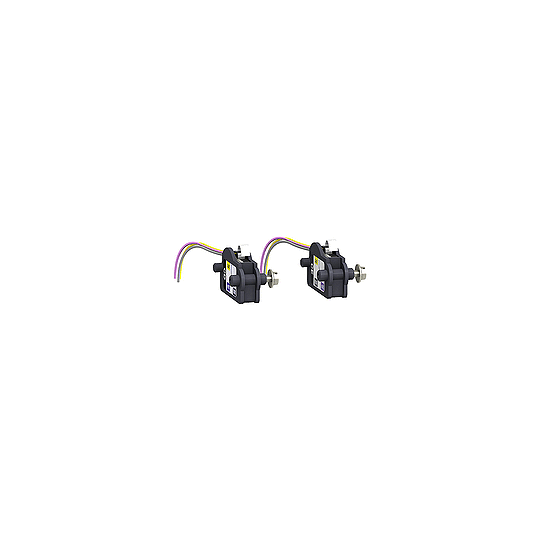

carriage switches, drawout ComPact NSX, chassis connected (CE)/diconnected (CD) position, 2 changeover contact types - LV429287
LV429287
€48.26 Excl. Tax
€57.91 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
Availability: contact us
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Range of product: | ComPact NSX100...250ComPact NSX400...630 |
|---|---|
| Range: | ComPact |
| Device short name: | CECD |
| Product or component type: | Carriage switch |
| Device application: | Monitoring |
| Range compatibility: | ComPact NSX100ComPact NSX160ComPact NSX250ComPact NSX400ComPact NSX630 |
| Signal contacts composition: | 2 NO/NC |
| Auxiliary contacts type: | Standard |
|---|---|
| Auxiliary contacts operation: | CE/CD |
| Mounting mode: | Drawout |
| [Ith] conventional free air thermal current: | 6 A |
| [Ie] rated operational current: | AC-12: 6 A at 110 V AC 50/60 HzAC-12: 6 A at 220/240 V AC 50/60 HzAC-12: 6 A at 24 V AC 50/60 HzAC-12: 6 A at 380/440 V AC 50/60 HzAC-12: 6 A at 48 V AC 50/60 HzAC-12: 6 A at 480 V AC 50/60 HzAC-12: 6 A at 660/690 V AC 50/60 HzAC-15: 0.1 A at 660/690 V AC 50/60 HzAC-15: 1.5 A at 480 V AC 50/60 HzAC-15: 2 A at 380/440 V AC 50/60 HzAC-15: 4 A at 220/240 V AC 50/60 HzAC-15: 5 A at 110 V AC 50/60 HzAC-15: 6 A at 24 V AC 50/60 HzAC-15: 6 A at 48 V AC 50/60 HzDC-12: 0.3 A at 250 V DCDC-12: 0.6 A at 110 V DCDC-12: 2.5 A at 48 V DCDC-12: 6 A at 24 V DCDC-14: 0.03 A at 250 V DCDC-14: 0.05 A at 110 V DCDC-14: 0.2 A at 48 V DCDC-14: 1 A at 24 V DC |
| Minimum load: | 100 mA at 24 V DC |
| Quantity per set: | 2 |
In short
Reference LV429287
Product Name carriage switches, drawout ComPact NSX, chassis connected (CE)/diconnected (CD) position, 2 changeover contact types - LV429287
Range Compact
Device function Surveillance
