ABB

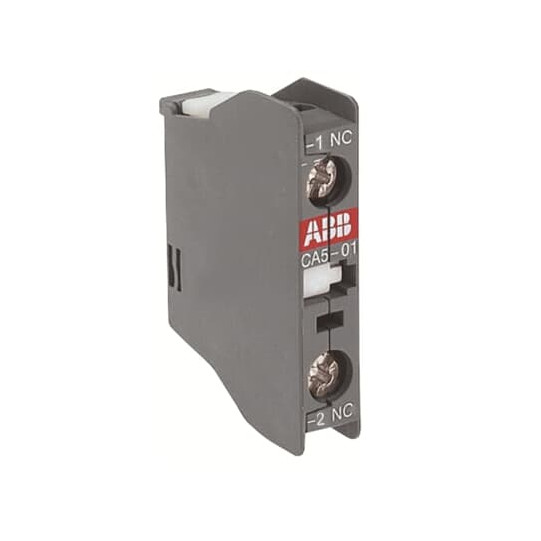

CA5-01 Auxiliary Contact Block - ABB1SBN010010R1001
ABB1SBN010010R1001
€3.93 Excl. Tax
€4.72 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Product Net Width: | 11 mm |
|---|---|
| Product Net Height: | 47 mm |
| Product Net Depth / Length: | 32,5 mm |
| Product Net Weight: | 0.012 kg |
| Number of Auxiliary Contacts NO: | 0 |
|---|---|
| Number of Auxiliary Contacts NC: | 1 |
| Number of Poles: | 1P |
| Rated Operational Voltage: | Auxiliary Circuit 690 V |
| Rated Frequency (f): | Auxiliary Circuit 50 / 60 Hz |
| Rated Operational Current AC-15 (Ie): | (500 V) 2 A (690 V) 2 A (24 / 127 V) 6 A (220 / 240 V) 4 A (380 / 400 V) 3 A |
| Rated Operational Current DC-13 (Ie): | (24 V) 6 A / 144 W (48 V) 2.8 A / 134 W (72 V) 1 A / 72 W (110 V) 0.55 A / 60 W (125 V) 0.55 A / 69 W (220 V) 0.30 A / 66 W (250 V) 0.3 / 75 W |
| Short-Circuit Protective Devices: | Auxiliary Circuit - gG Type Fuses 10 A |
| Rated Short-time Withstand Current Low Voltage (Icw): | for 0.1 s 140 A for 1 s 100 A |
| Rated Insulation Voltage (Ui): | acc. to IEC 60947-5-1 690 V acc. to UL/CSA 600 V |
| Maximum Electrical Switching Frequency: | 1200 cycles per hour |
| Mechanical Durability: | 10 million 3 million |
| Maximum Mechanical Switching Frequency: | 3600 cycles per hour |
| Minimum Switching Capacity: | A9 ... A75 17 / 5 VLT4K A95 ... A110 24 / 50 VLT4K |
| Power Loss: | at Rated Operating Conditions per Pole 0.1 W |
| Degree of Protection: | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Terminal Type: | Screw Terminals |
| Suitable For: | AF45 AF50 AF63 AF75 AF95B GAF75 A9 A12 A16 A26 |
In short
Reference ABB1SBN010010R1001
Product Name CA5-01 Auxiliary Contact Block - ABB1SBN010010R1001
