SCHNEIDER

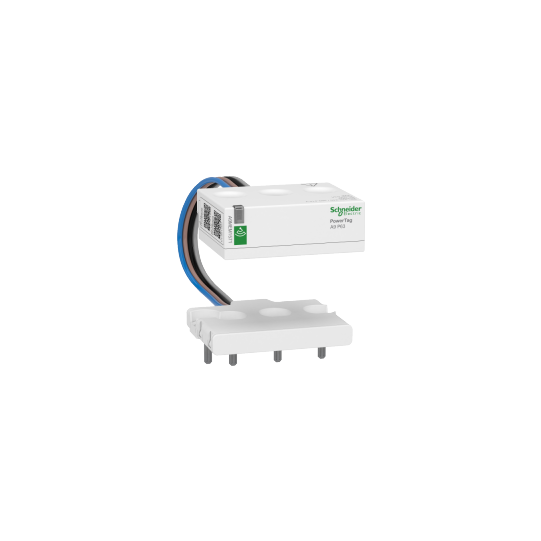

energy sensor, PowerTag phaseNeutral 63A 3P+N top position - A9MEM1571
A9MEM1571
€152.79 Excl. Tax
€183.35 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Range: | PowerLogic |
|---|---|
| Product name: | PowerTag A9 P63 |
| Product or component type: | Energy sensor |
| Poles description: | 3P + N |
| Max current: | 63 A |
| [Ib] Basic current: | 10 A |
| Starting current: | 40 mA |
| Saturation current: | 130 A |
| Product specific application: | Load monitoringOverload alarmCircuit monitoringCost allocationEnergy management |
| Concentrator compatibility: | EcoStruxure Panel Server EntryEcoStruxure Panel Server UniversalEcoStruxure Panel Server AdvancedWiser hub generation 2Acti9 Smartlink SI BActi9 Smartlink SI DActi9 PowerTag LinkActi9 PowerTag Link HD |
| Market segment: | Buildings: breaker voltage monitoringBuildings: cost allocationBuildings: overload alarm |
| Range compatibility: | Multi9 Multi9 N40 VigiActi9 Acti9 C40 VigiActi9 Acti9 iDPNActi9 Acti9 iC40Multi9 Multi9 N40Acti9 Acti9 iCV40Acti9 Acti9 C40Acti9 Acti9 DT40Acti9 Acti9 DT40 VigiActi9 Acti9 iDPN Vigi |
| Type of measurement: | Active powerPower factorActive energyVoltageCurrent |
| Accuracy class: | Class 1 current conforming to IEC 61557-12Class 0.5 voltage conforming to IEC 61557-12Class 1 active power conforming to IEC 61557-12Class 1 active energy conforming to IEC 61557-12Class 1 power factor conforming to IEC 61557-12 |
| Mounting location: | Top |
| Mounting support: | On circuit breaker |
| Connection pitch: | 9 mm Ph/N18 mm Ph/Ph |
| Product destination: | Switchboard |
| Event management: | Voltage loss with measured current at voltage loss |
| Transmission support medium: | Radio frequency 2.4...2.4835 GHz conforming to IEEE 802.15.4 |
| Emission power: | 10 mW |
| Form factor: | PhaseNeutral |
|---|---|
| Mounting mode: | By screws (terminals) |
| Electrical connection: | Connector tooth |
| Cable cross section: | 1 rigid cable 1.5...16 mm²2 stranded cable 1.5...2.5 mm²2 rigid cable 1.5...2.5 mm²1 stranded cable 1.5...16 mm² |
| [Ue] rated operational voltage: | 220...240 V AC, +/- 20 %, between phase and neutral380...415 V AC, +/- 20 %, between phases |
| Network frequency: | 50 Hz60 Hz |
| Power consumption in VA: | 2 VA |
| Standards: | IEC 61557-12IEC 61010-1IEC 61010-2-030IEC 61326-1ETSI EN 300 328ETSI EN 301 489-1 |
| Product certifications: | IEC |
| Height: | Sensor element: 19.5 mmBase unit: 8 mm |
| Width: | Sensor element: 54 mmBase unit: 54 mm |
| Depth: | Sensor element: 43 mmBase unit: 48 mm |
| Net weight: | 48 g |
| Colour: | White (RAL 9003) |
| Compatibility code: | PowerTag A9 P63 |
In short
Reference A9MEM1571
Product Name energy sensor, PowerTag phaseNeutral 63A 3P+N top position - A9MEM1571
Range PowerLogic
