LEGRAND

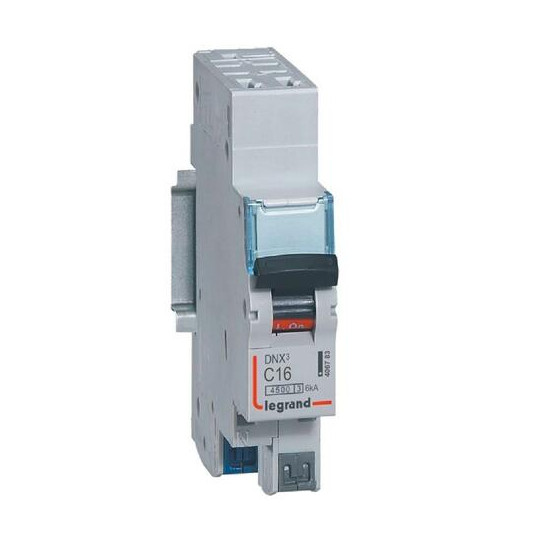

Phase+Neutral Circuit Breaker DNX³4500 6kA automatic terminal inlet and outlet - 1P+N 230V~ 16A curve C - 1 module - LEGRAND - LEG406783
LEG406783
€10.80 Excl. Tax
€12.96 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock more than 100 units – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 250€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Technical | |
|---|---|
| Color | Gray |
| Frequency | 50-60 Hz |
| RAL Number | 7035 |
| Terminal Type | Automatic terminal |
| Halogen Free | Yes |
| Voltage Type | AC |
| Explosion-proof | No |
| Overall Height | 94.8 mm |
| Overall Width | 17.8 mm |
| Flush-mounted | Yes |
| Rated Voltage | 230 V |
| Pollution Degree | 2 |
| Power Supply Voltage | 180-250 V |
| Storage Temperature | -40-70 °C |
| Rated Current | 16 A |
| Total Number of Poles | 2 |
| Protection Class (IP) | IP20 |
| Flush Depth | 44 mm |
| Shock Resistance (IK) | IK02 |
| Number of Protected Poles | 1 |
| Overall Depth/Length | 77.7 mm |
| Energy Limiting Class | 3 |
| Rated Insulation Voltage (Ui) | 250 V |
| Auxiliaries Possible | Yes |
| Tripping Characteristic | C |
| Power Supply Direction | From the top |
| Width in Pitch Units | 1 |
| Operating Ambient Temperature | -25-70 °C |
| Neutral Conductor Connected Simultaneously | Yes |
| Impulse Withstand Voltage (Uimp) | 4 kV |
| Single-wire Conductor Section | 0.75-4 mm² |
| Multi-wire Conductor Section | 0.75-4 mm² |
| Terminal Marking Indication | Yes |
| Breaking Capacity Icn (EN 60898 at 230 V) | 4.5 kA |
| Breaking Capacity Icu (IEC 60947-16 At 230 V) | 6 kA |
In short
Reference LEG406783
Product Name Phase+Neutral Circuit Breaker DNX³4500 6kA automatic terminal inlet and outlet - 1P+N 230V~ 16A curve C - 1 module - LEGRAND - LEG406783
